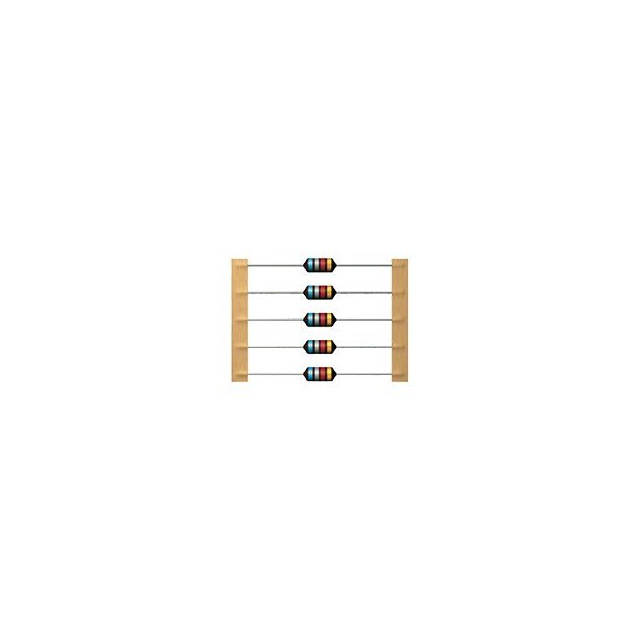

B82144A2154J000 Real Image1 B82144A2154J000 Real Image2
Same model may have multiple batches, images only for reference.
B82144A2154J000 Real Image1 B82144A2154J000 Real Image2
B82144A2154J000 Real Image1 B82144A2154J000 Real Image2
Same model may have multiple batches, images only for reference.

B82144A2154J000

Part No B82144A2154J000
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description FIXED IND 150UH 500MA 900MOHM TH / 150 µH Unshielded Drum Core, Wirewound Inductor 500 mA 900mOhm Max Axial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr EPCOS - TDK Electronics
Series LBC
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 150 µH
Tolerance ±5%
Current Rating (Amps) 500 mA
Shielding Unshielded
DC Resistance (DCR) 900mOhm Max
Q @ Freq 50 @ 796kHz
Frequency - Self Resonant 3MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Through Hole
Package / Case Axial
Dimension 0.205" Dia x 0.472" L (5.20mm x 12.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8504.50.8000
Other Names B82144A2154J,B82144A2154J-ND
Standard Package 3,000
Win Source Part Number 967125-B82144A2154J000
Ultra Librarian 3D Model Ultra Librarian B82144A2154J000 CAD Model

Description

This fixed inductor belongs to the LBC series and is a drum core, wirewound type.

  • Series: LBC
  • Type: Drum Core, Wirewound
  • Shielding: Unshielded
  • Inductance: 150 µH
  • Tolerance: ±5%
  • Core Material: Ferrite
  • Q @ Freq: 50 @ 796kHz
  • Frequency of Self-Resonance: 3MHz
  • DC Resistance (DCR): 900mOhm Max
  • Current Rating: 500mA
  • Mounting: Through Hole
  • Temperature Range: -55°C to 125°C
  • Package: Tape & Reel (TR)
  • Package/Case: Axial
  • Standard Package: 3,000
  • Dimension: 0.205" Dia x 0.472" L (5.20mm x 12.00mm)
  • Manufacturer: EPCOS-TDK Electronics
  • Also Known As: B82144A2154J or B82144A2154J-ND
