Same model may have multiple batches, images only for reference.

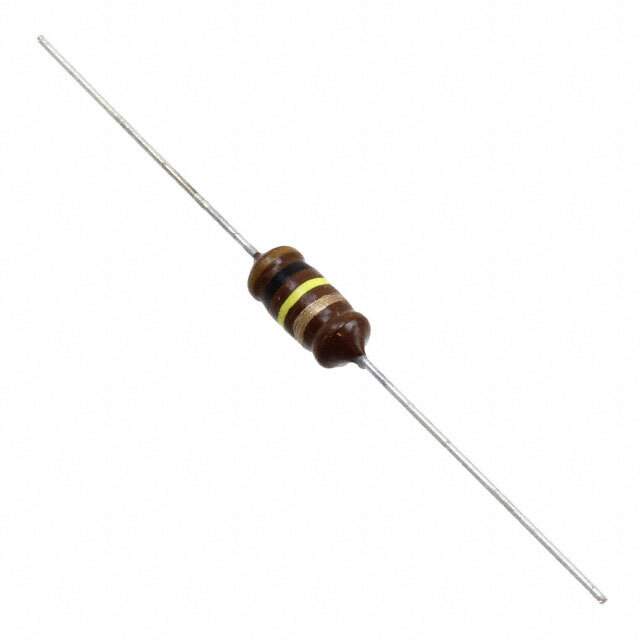

B82144A2107J000 Real Image
Same model may have multiple batches, images only for reference.

B82144A2107J000

Part No B82144A2107J000
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description FIXED IND 100MH 20MA 420 OHM TH / 100 mH Unshielded Drum Core, Wirewound Inductor 20 mA 420Ohm Max Axial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr EPCOS - TDK Electronics
Series LBC
Package Tape & Reel (TR),Cut Tape (CT)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 100 mH
Tolerance ±5%
Current Rating (Amps) 20 mA
Shielding Unshielded
DC Resistance (DCR) 420Ohm Max
Q @ Freq 30 @ 79.6kHz
Frequency - Self Resonant 120kHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 10 kHz
Mounting Type Through Hole
Package / Case Axial
Dimension 0.205" Dia x 0.472" L (5.20mm x 12.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8504.50.8000
Other Names B82144A2107J,B82144A2107J-ND,495-5616-6,495-5616-6-ND,495-5616-2,495-5616-1,495-5616-6INACTIVE
Standard Package 1,500
Win Source Part Number 1035701-B82144A2107J000
Ultra Librarian 3D Model Ultra Librarian B82144A2107J000 CAD Model

Description

The EPCOS (TDK) B82144A2107J000 is a through-hole, fixed inductor with an inductance of 100 mH and a tolerance of ±5%.

  • Mounting: Through-Hole
  • Type: Fixed Inductor
  • Inductance: 100 mH
  • Tolerance: ±5%
  • Q: 30 @ 79.6kHz
  • Self-Resonant Frequency: 120 kHz
  • DC Resistance: 420 Ohm max
  • Core Material: Ferrite
  • Packaging: Tape and Reel
  • Standard Package: 1500
  • RoHS: Affected
  • ECCN: EAR99
  • HTSUS: 8504.50.8000
