Same model may have multiple batches, images only for reference.

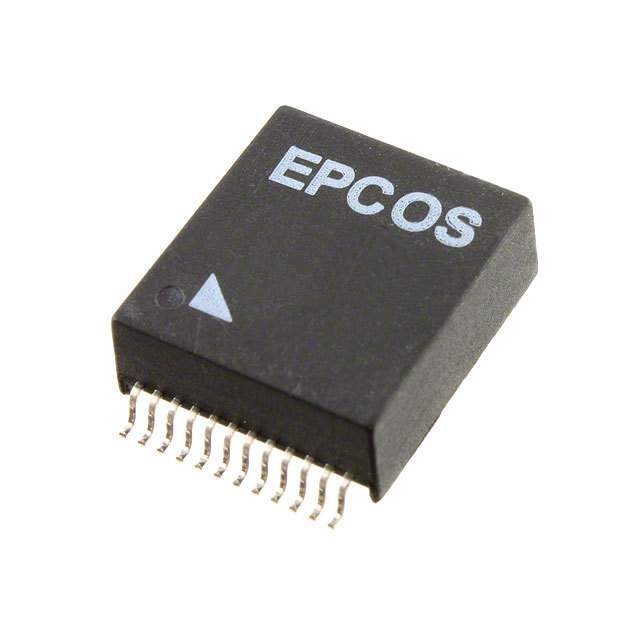

B78476A8135A003 EPCOS (TDK)
Same model may have multiple batches, images only for reference.

B78476A8135A003

Part No B78476A8135A003
Manufacturer EPCOS (TDK)
Catalog Pulse Transformers
Description MODULE MAGNETIC LAN 1-PORT SMD / Telecom Transformer 1CT:1CT 24 Terminal Gull Wing SMD Automotive
Datasheet
B78476A8135A003 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer EPCOS (TDK)
Packaging Reel package
Mounting SMD
Dimension 0.543" L x 0.598" W (13.80mm x 15.20mm)
Height - Seated (Maximum) 0.235" (5.97mm)
Win Source Part Number 769555-B78476A8135A003
Popularity Medium
Supply and Demand Status Limited
Family Name B78476A
Introduction Date September 18, 2008
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian B78476A8135A003 CAD Model

Description

The EPCOS (TDK) 769555-B78476A8135A003 is a transformer with a reel package and SMD mounting.

  • Family: B78476A
  • Dimension: 0.543" L x 0.598" W (13.80mm x 15.20mm)
  • Height: 0.235" (5.97mm) (Seated)
  • Introduction Date: September 18, 2008
  • ECCN: EAR99
  • Country of Origin: China
  • Estimated EOL Date: 2026
  • Halogen-Free: Yes
