Same model may have multiple batches, images only for reference.

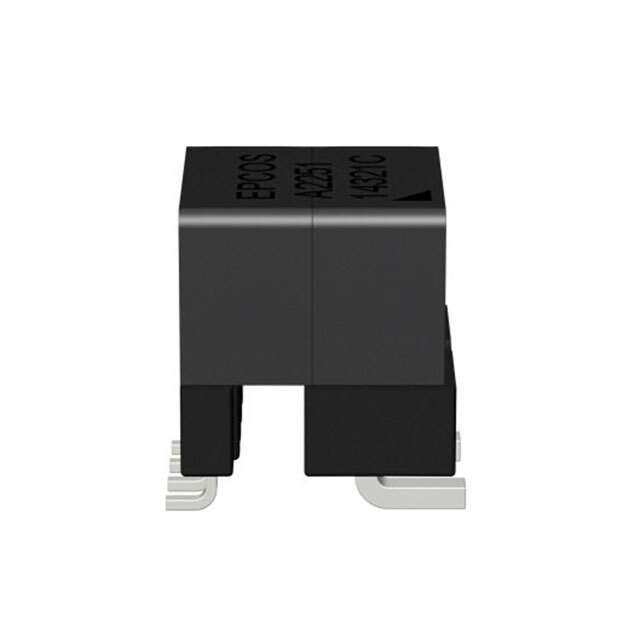

B78419A2251A003 Real Image
Same model may have multiple batches, images only for reference.

B78419A2251A003

Part No B78419A2251A003
Manufacturer EPCOS (TDK)
Catalog Current Sense Transformers
Description CURR SENSE XFMR 1:100 SMD / 1:100 Current Sense Transformer 50kHz ~ 250kHz 0.5mOhm Primary, 3.1Ohm Secondary 7 mH Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Current Sense Transformers
Mfr EPCOS - TDK Electronics
Series B78419
Package Tape & Reel
Frequency Range 50kHz ~ 250kHz
Type Invasive
Inductance 7 mH
DC Resistance (DCR) 0.5mOhm Primary, 3.1Ohm Secondary
Mounting SMD (SMT)
Dimension 0.504" L x 0.535" W (12.80mm x 13.60mm)
Height - Seated (Max) 0.567" (14.40mm)
Termination Style Gull Wing
Weight 0.011 lb (4.99 g)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Other Names 495-7239-2,495-7239-1,495-7239-6,B78419A2251A3,B78419A2251A 3,B78419A2251A 3
Standard Package 200
Win Source Part Number 997956-B78419A2251A003
Ultra Librarian 3D Model Ultra Librarian B78419A2251A003 CAD Model

Description

The EPCOS (TDK) B78419A2251A003 is an invasive type current sense transformer with an inductance of 7 mH and a frequency range of 50kHz to 250kHz.

  • Type: Current Sense Transformer
  • Inductance: 7 mH
  • Frequency Range: 50kHz to 250kHz
  • Package: Tape & Reel
  • Mounting: SMD (SMT)
  • DC Resistance (DCR) Primary: 0.5mOhm
  • DC Resistance (DCR) Secondary: 3.1Ohm
  • Temperature Range: Not Specified
  • Popularity: Medium
  • Manufacturer: EPCOS - TDK Electronics
