Same model may have multiple batches, images only for reference.

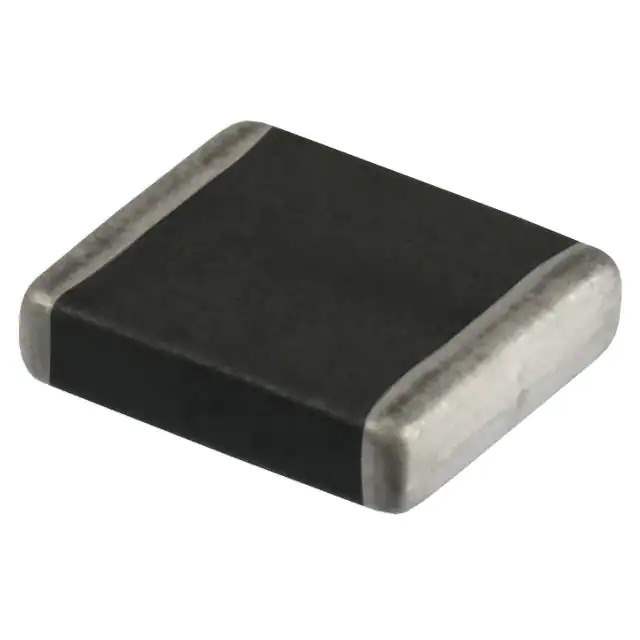

B72540V1140S262 Real Image
Same model may have multiple batches, images only for reference.

B72540V1140S262

Part No B72540V1140S262
Manufacturer EPCOS (TDK)
Catalog TVS - Varistors, MOVs
Description VARISTOR 22V 1.2KA 2220
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - Varistors, MOVs
Mfr EPCOS (TDK)
Series Automotive, AEC-Q200
Package Tape & Reel
Product Status Active
Maximum AC Volts 14 V
Maximum DC Volts 16 V
Varistor Voltage (Min) 16.94 V
Varistor Voltage (Typ) 22 V
Varistor Voltage (Max) 27.06 V
Current - Surge 1.2 kA
Energy 5.8J
Number of Circuits 1
Capacitance @ Frequency 9500 pF @ 1 kHz
Temperature Range - Operating -55°C ~ 125°C (TA)
Mounting Type Surface Mount, MLCV
Package / Case 2220 (5750 Metric)
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.4000
Win Source Part Number 845702-B72540V1140S262
Ultra Librarian 3D Model Ultra Librarian B72540V1140S262 CAD Model

Description

The 845702-B72540V1140S262 is an automotive-grade varistor designed for circuit protection against transient voltage spikes manufactured by EPCOS (TDK).

  • Series: AEC-Q200
  • Package: Tape and Reel
  • Capacitance: 9500 pF @ 1 kHz
  • Varistor Voltage Range: 16.94 V to 27.06 V
  • Surge Current: 1.2 kA
  • Maximum AC Voltage: 14 V
  • Maximum DC Voltage: 16 V
  • Energy Rating: 5.8J
  • Mounting Type: Surface Mount
  • Package / Case: 2220 (5750 Metric)
  • Operating Temperature: -55°C to 125°C
  • Application: Automotive
