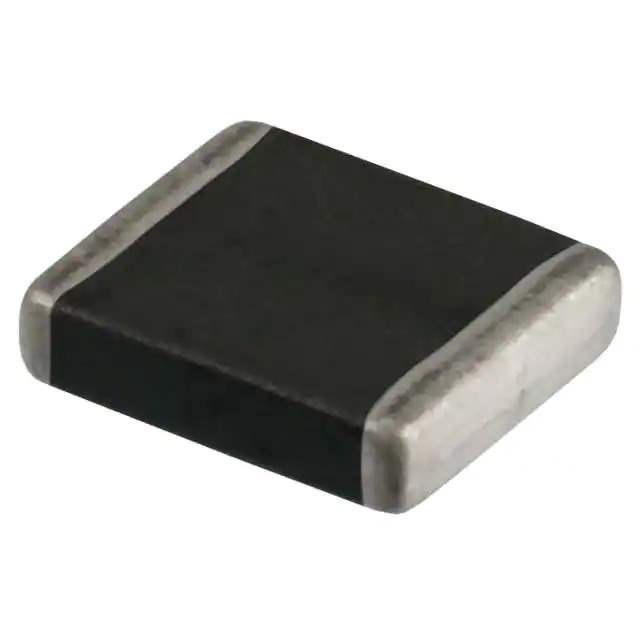

B72540E3140S272 Real Image
Same model may have multiple batches, images only for reference.

B72540E3140S272

Part No B72540E3140S272
Manufacturer EPCOS (TDK)
Catalog TVS - Varistors, MOVs
Description VARISTOR 24.5V 1.2KA 2220 / 24.5 V 1.2 kA Varistor 1 Circuit Surface Mount, MLCV 2220 (5750 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - Varistors, MOVs
Mfr EPCOS (TDK)
Series Automotive, AEC-Q200, E
Package Tape & Reel
Product Status Active
Maximum AC Volts 14 V
Maximum DC Volts 16 V
Varistor Voltage (Min) 20.83 V
Varistor Voltage (Typ) 24.5 V
Varistor Voltage (Max) 28.18 V
Current - Surge 1.2 kA
Energy 5.8J
Number of Circuits 1
Capacitance @ Frequency 15000 pF @ 1 kHz
Temperature Range - Operating -55°C ~ 150°C (TA)
Mounting Type Surface Mount, MLCV
Package / Case 2220 (5750 Metric)
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.4000
Win Source Part Number 849603-B72540E3140S272
Ultra Librarian 3D Model Ultra Librarian B72540E3140S272 CAD Model

Description

The 849603-B72540E3140S272 is a transient voltage suppressor (TVS) varistor from the automotive, AEC-Q200, E series by EPCOS (TDK).

  • Application: Automotive
  • AEC-Q200 Rated: Yes
  • Varistor Voltage: 20.83V to 28.18V
  • Surge Current Rating: 1.2 kA
  • Maximum AC Voltage: 14V
  • Maximum DC Voltage: 16V
  • Energy Rating: 5.8J
  • Mounting Type: Surface Mount
  • Package: 2220 (5750 Metric)
  • Temperature Range: -55°C to 150°C
