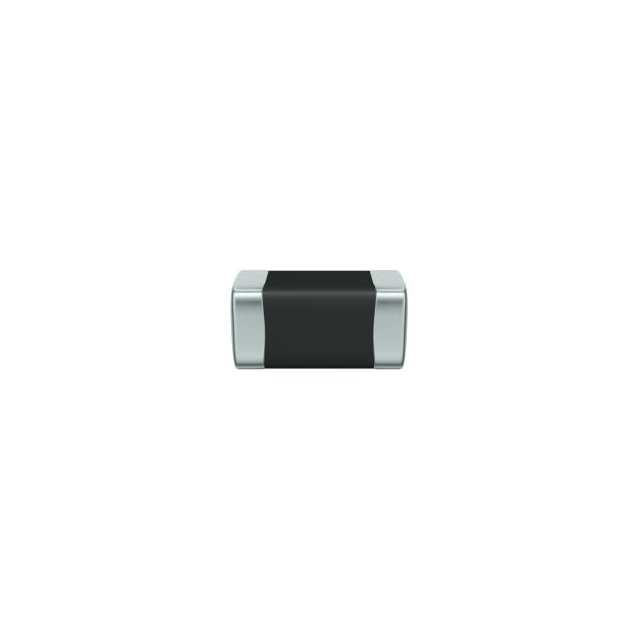

Same model may have multiple batches, images only for reference.
B72520G1140S262 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B72520G1140S262

Part No B72520G1140S262
Manufacturer EPCOS (TDK)
Catalog TVS - Varistors, MOVs
Description 24.5 V 200 A Varistor 1 Circuit Surface Mount, MLCV 1206 (3216 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Series G
Packaging Reel - TR
Maximum AC Volts 14 V
Maximum DC Volts 16 V
Varistor Voltage (Min) 20.825 V
Varistor Voltage (Typ) 24.5 V
Varistor Voltage (Max) 28.175 V
Current - Surge 200 A
Energy 0.6J
Number of Circuits 1
Capacitance @ Frequency 1500 pF @ 1 kHz
Temperature Range - Operating -55°C ~ 150°C (TA)
Grade Automotive
Qualification AEC-Q200
Mounting Type Surface Mount, MLCV
Package / Case 1206 (3216 Metric)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.4000
Win Source Part Number 1489233-B72520G1140S262
Ultra Librarian 3D Model Ultra Librarian B72520G1140S262 CAD Model
