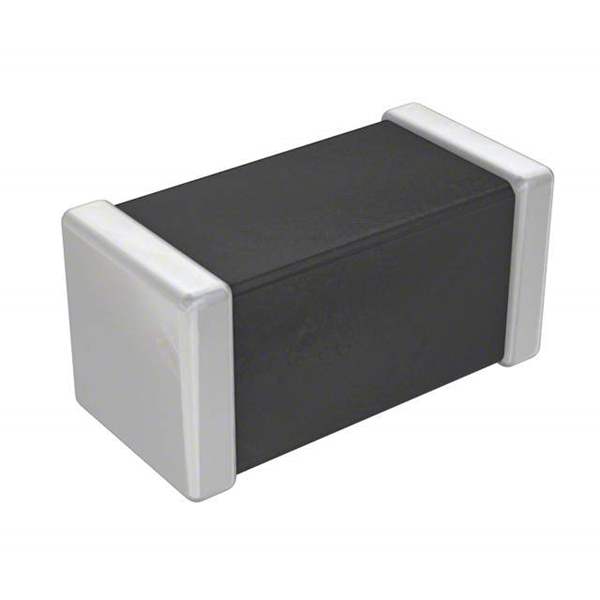

B72500E1140S260 EPCOS (TDK)
Same model may have multiple batches, images only for reference.

B72500E1140S260

Part No B72500E1140S260
Manufacturer EPCOS (TDK)
Catalog TVS - Varistors, MOVs
Description VARISTOR 24.5V 30A 0603
Datasheet
B72500E1140S260 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer EPCOS (TDK)
Packaging Reel - TR
Status Active
Varistor Voltage (Min) 20.83V
Varistor Voltage (Typ) 24.5V
Varistor Voltage (Max) 28.18V
Current - Surge 30A
Energy 0.20J
Number of Circuits 1
Maximum AC Volts 14VAC
Maximum DC Volts 16VDC
Capacitance @ Frequency 120pF @ 1kHz
Temperature Range - Operating -55°C to 150°C (TA)
Mounting Surface Mount, MLCV
Dimension 0603 (1608 Metric)
Win Source Part Number 1030750-B72500E1140S260
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B72500E1140S260 CAD Model

Description

The EPCOS (TDK) 1030750-B72500E1140S260 is a high-quality surface mount capacitor that is designed for use in a wide range of applications.

  • Capacitance: 120pF @ 1kHz
  • Varistor Voltage (Min): 20.83V
  • Varistor Voltage (Typ): 24.5V
  • Varistor Voltage (Max): 28.18V
  • Mounting: MLCV
  • Dimension: 0603 (1608 Metric)
  • Energy Rating: 0.20J
