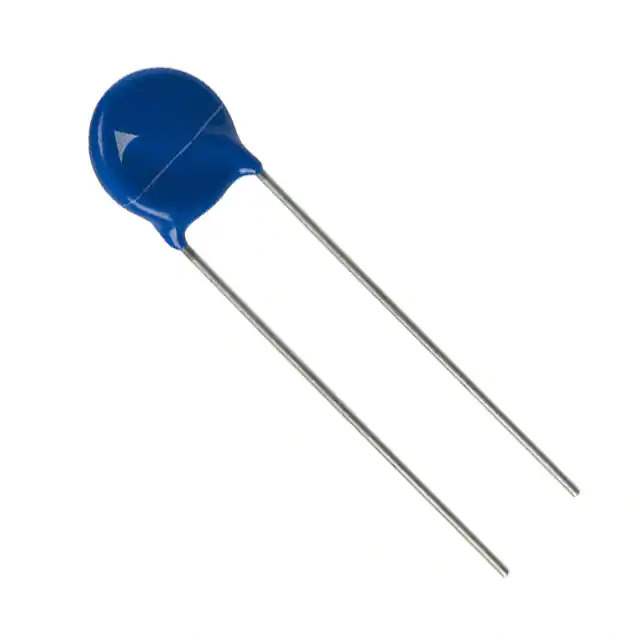

B72210S0511K101 Real Image
Same model may have multiple batches, images only for reference.

B72210S0511K101

Part No B72210S0511K101
Manufacturer EPCOS (TDK)
Catalog TVS - Varistors, MOVs
Description VARISTOR 820V 2.5KA DISC 10MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - Varistors, MOVs
Mfr EPCOS (TDK)
Series StandarD
Package Bulk
Product Status Active
Maximum AC Volts 510 V
Maximum DC Volts 670 V
Varistor Voltage (Min) 738 V
Varistor Voltage (Typ) 820 V
Varistor Voltage (Max) 902 V
Current - Surge 2.5 kA
Energy 55J
Number of Circuits 1
Capacitance @ Frequency 140 pF @ 1 kHz
Temperature Range - Operating -40°C ~ 105°C (TA)
Mounting Type Through Hole
Package / Case Disc 10mm
Base Product Number B72210S
Standard Package 500 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.4000
Win Source Part Number 843168-B72210S0511K101
Ultra Librarian 3D Model Ultra Librarian B72210S0511K101 CAD Model

Description

The 843168-B72210S0511K101 is a varistor, specifically a transient voltage suppressor (TVS), used for circuit protection against voltage surges and transients.

  • Series: StandarD
  • Mounting: Through-Hole
  • Varistor Voltage Range: 738 V to 902 V
  • Max AC Volts: 510 V
  • Max DC Volts: 670 V
  • Capacitance: 140 pF @ 1 kHz
  • Surge Current: 2.5 kA
  • Standard Package: 500 pcs
  • Manufacturer: EPCOS (TDK)
