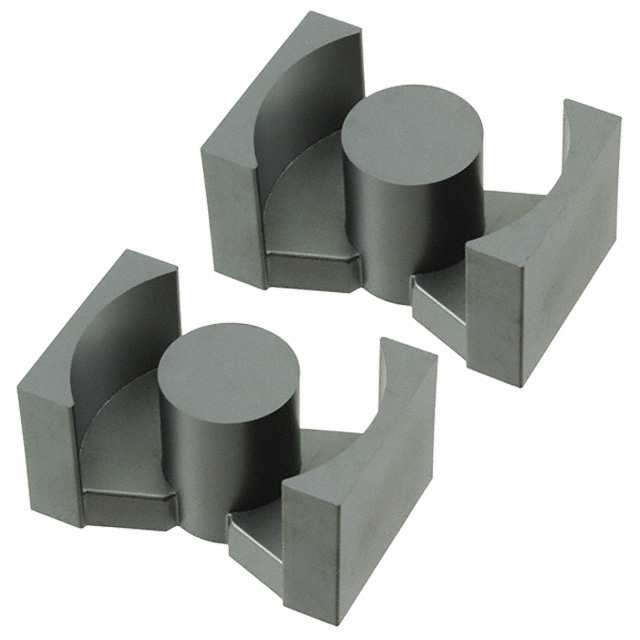

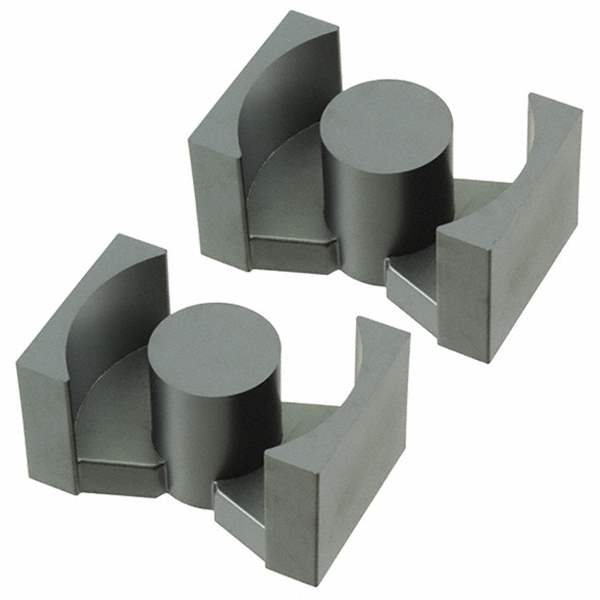

B65877B0000R095 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B65877B0000R095

Part No B65877B0000R095
Manufacturer EPCOS (TDK)
Catalog Ferrite Cores
Description Uncoated N95 Ferrite Core PQ Type 1.043" (26.50mm) Length 0.748" (19.00mm) Width Diameter 0.397" (10.08mm) Height
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Series PQ26/20
Packaging Box
Core Type PQ
Supplier Device Package PQ 26 x 20
Material N95
Inductance Factor (Al) 6.3 µH
Tolerance -20%, +30%
Gap Ungapped
Effective Permeability (µe) 1820.0
Initial Permeability (µi) 2000
Core Factor (ΣI/A) mm⁻¹ 0.363
Effective Length (le) mm 44.4
Effective Area (Ae) mm2 122.3
Minimum Core Cross Section (Amin) mm2 108.8
Effective Magnetic Volume (Ve) mm3 5435.0
Finish Uncoated
Height 0.397" (10.08mm)
Length 1.043" (26.50mm)
Width 0.748" (19.00mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.90.9630
Win Source Part Number 1490293-B65877B0000R095
Ultra Librarian 3D Model Ultra Librarian B65877B0000R095 CAD Model
