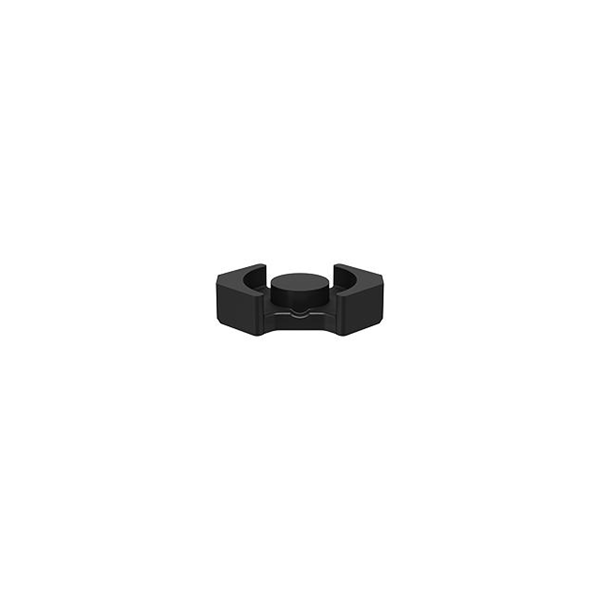

B65815P0000R087 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B65815P0000R087

Part No B65815P0000R087
Manufacturer EPCOS (TDK)
Catalog Ferrite Cores
Description Uncoated N87 Ferrite Core RM Type 1.480" (37.60mm) Length 0.634" (16.10mm) Width Diameter 0.331" (8.40mm) Height
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Series RM12/LP
Packaging Box
Core Type RM
Supplier Device Package RM 12 LP
Material N87
Inductance Factor (Al) 6.3 µH
Tolerance -20%, +30%
Gap Ungapped
Effective Permeability (µe) 1430.0
Initial Permeability (µi) 2200
Core Factor (ΣI/A) mm⁻¹ 0.29
Effective Length (le) mm 42.0
Effective Area (Ae) mm2 147.5
Minimum Core Cross Section (Amin) mm2 124.7
Effective Magnetic Volume (Ve) mm3 6195.0
Finish Uncoated
Height 0.331" (8.40mm)
Length 1.480" (37.60mm)
Width 0.634" (16.10mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.90.9630
Win Source Part Number 1490086-B65815P0000R087
Ultra Librarian 3D Model Ultra Librarian B65815P0000R087 CAD Model
