B65815E0000R030 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B65815E0000R030

Part No B65815E0000R030
Manufacturer EPCOS (TDK)
Catalog Ferrite Cores

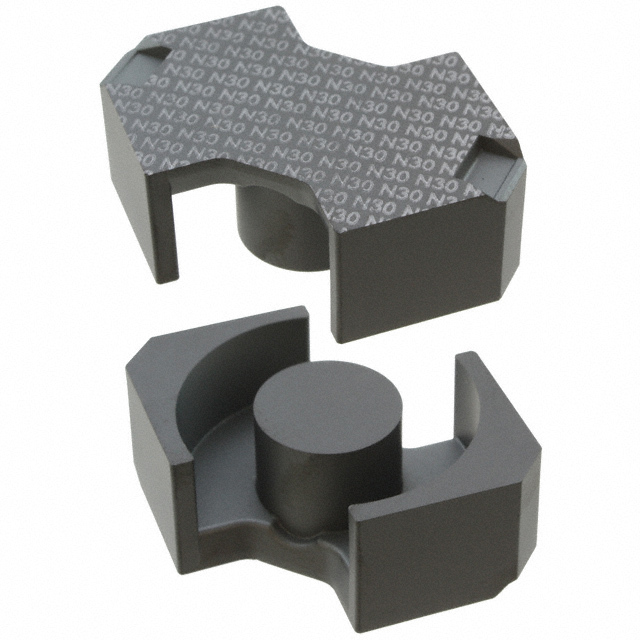

Description Uncoated N30 Ferrite Core RM Type 1.480" (37.60mm) Length 0.634" (16.10mm) Width Diameter 0.484" (12.30mm) Height
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Series RM12
Packaging Box
Core Type RM
Supplier Device Package RM 12
Material N30
Inductance Factor (Al) 8.7 µH
Tolerance -20%, +30%
Gap Ungapped
Effective Permeability (µe) 2700.0
Initial Permeability (µi) 4300
Core Factor (ΣI/A) mm⁻¹ 0.39
Effective Length (le) mm 57.0
Effective Area (Ae) mm2 146.0
Minimum Core Cross Section (Amin) mm2 125.0
Effective Magnetic Volume (Ve) mm3 8320.0
Finish Uncoated
Height 0.484" (12.30mm)
Length 1.480" (37.60mm)
Width 0.634" (16.10mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.90.9630
Win Source Part Number 1490069-B65815E0000R030
Ultra Librarian 3D Model Ultra Librarian B65815E0000R030 CAD Model
