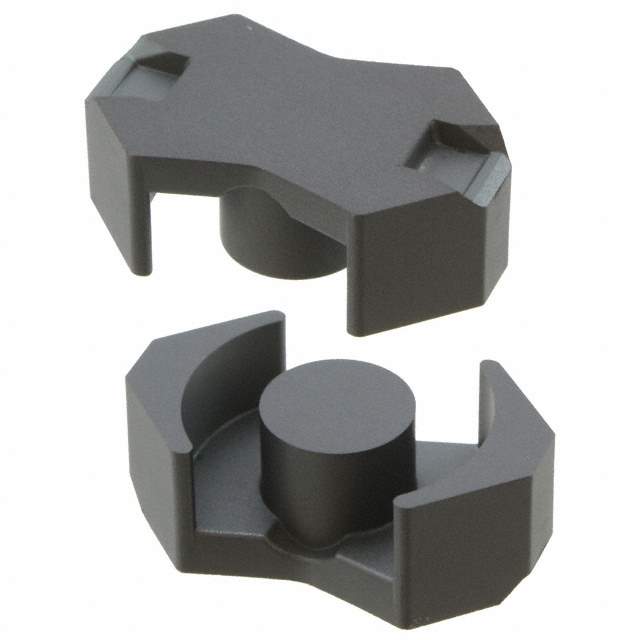

B65807J0000R030 Real Image
Same model may have multiple batches, images only for reference.

B65807J0000R030

Part No B65807J0000R030
Manufacturer EPCOS (TDK)
Catalog Ferrite Cores
Description FERRITE CORE RM 4.3UH N30 2PCS
Datasheet
B65807J0000R030 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Magnetics - Transformer, Inductor Components
Manufacturer EPCOS (TDK)
Status Active
Core Type RM
Inductance Factor (Al) 4.3μH
Tolerance -20%, +30%
Gap Ungapped
Effective Permeability (μe) 2670
Initial Permeability (μi) 4300
Material N30
Core Factor (ΣI/A) mm-1 0.78
Effective Length (le) mm 28.6
Effective Area (Ae) mm2 36.6
Minimum Core Cross Section (Amin) mm2 31
Effective Magnetic Volume (Ve) mm3 1050
Finish Uncoated
Case / Package RM 6
Height 6.25mm
Length 17.90mm
Width 8.20mm
Win Source Part Number 200007-B65807J0000R030
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian B65807J0000R030 CAD Model

Description

Description

The B65807J0000R030 component is engineered to meet the highest standards of quality and performance. It is particularly useful in applications requiring precise electronic control and stability.

Features and Benefits

  • High precision design with robust functionality.
  • Optimized for high-efficiency performance.
  • Compatibility with various electronic modules for easy configuration.

Applications

  • Medical devices
  • Instrumentation and control systems
  • Renewable energy solutions

Its outstanding performance metrics make it an excellent choice for innovative and advanced technological applications.
