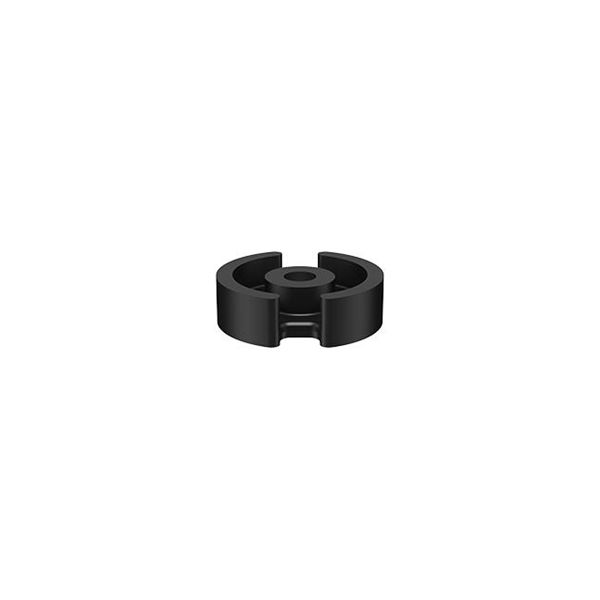

B65501D0000R033 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B65501D0000R033

Part No B65501D0000R033
Manufacturer EPCOS (TDK)
Catalog Ferrite Cores
Description Uncoated M33 Ferrite Core P (Pot Core) Type Length Width 0.228" (5.80mm) Diameter 0.067" (1.70mm) Height
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Series P5.8/3.3
Packaging Box
Core Type P (Pot Core)
Supplier Device Package P 5.8 x 3.3
Material M33
Diameter 0.228" (5.80mm)
Inductance Factor (Al) 350 nH
Tolerance -20%, +30%
Gap Ungapped
Effective Permeability (µe) 470.0
Initial Permeability (µi) 750
Core Factor (ΣI/A) mm⁻¹ 1.68
Effective Length (le) mm 7.9
Effective Area (Ae) mm2 4.7
Effective Magnetic Volume (Ve) mm3 37.0
Finish Uncoated
Height 0.067" (1.70mm)
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.90.9630
Win Source Part Number 1489528-B65501D0000R033
Ultra Librarian 3D Model Ultra Librarian B65501D0000R033 CAD Model
