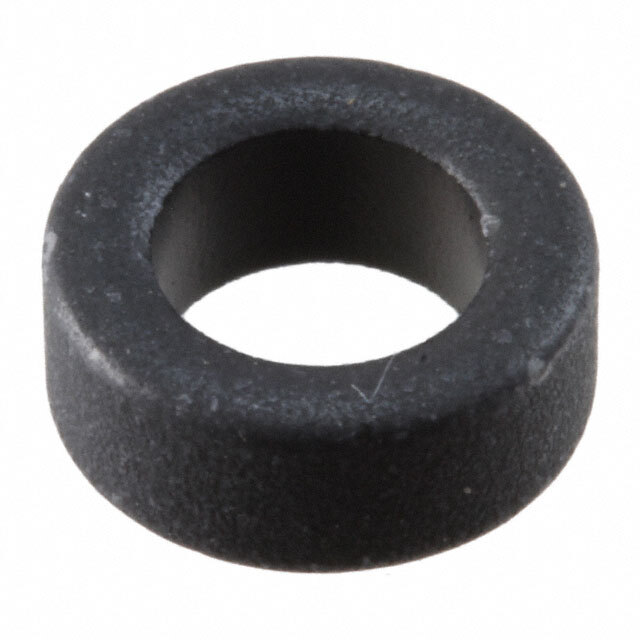

B64290P0683X065 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B64290P0683X065

Part No B64290P0683X065
Manufacturer EPCOS (TDK)
Catalog Ferrite Cores
Description Parylene T65 Ferrite Core Toroid Type Length Width 0.121" (3.07mm) Diameter 0.051" (1.29mm) Height
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Series TC3.1/1.3/1.3
Packaging Box
Core Type Toroid
Material T65
Diameter 0.121" (3.07mm)
Inductance Factor (Al) 1 µH
Tolerance ±30%
Gap Ungapped
Initial Permeability (µi) 4500
Core Factor (ΣI/A) mm⁻¹ 5.65
Effective Length (le) mm 5.99
Effective Area (Ae) mm2 1.06
Effective Magnetic Volume (Ve) mm3 6.4
Finish Parylene
Height 0.051" (1.29mm)
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.90.9630
Win Source Part Number 1489511-B64290P0683X065
Ultra Librarian 3D Model Ultra Librarian B64290P0683X065 CAD Model
