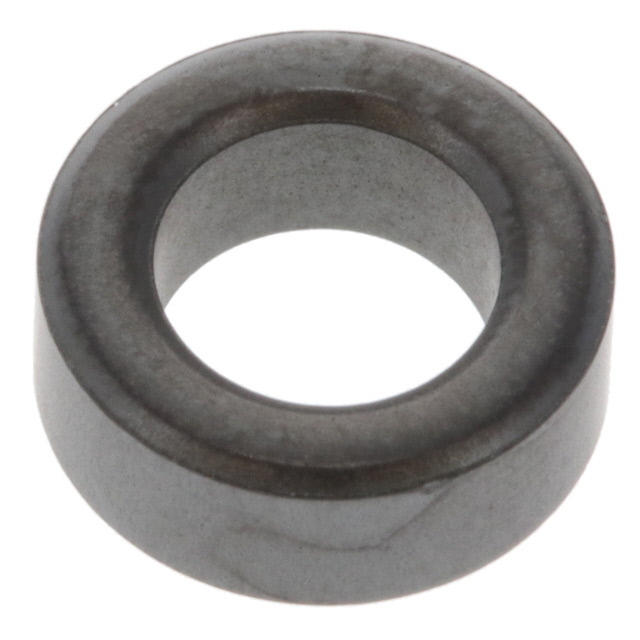

B64290A0038X038 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B64290A0038X038

Part No B64290A0038X038
Manufacturer EPCOS (TDK)
Catalog Ferrite Cores
Description Uncoated T38 Ferrite Core Toroid Type Length Width 0.394" (10.00mm) Diameter 0.157" (4.00mm) Height
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Series T10/6/4
Packaging Box
Core Type Toroid
Supplier Device Package R 10 x 6 x 4
Material T38
Diameter 0.394" (10.00mm)
Inductance Factor (Al) 4.09 µH
Tolerance ±30%
Gap Ungapped
Initial Permeability (µi) 10000
Core Factor (ΣI/A) mm⁻¹ 3.07
Effective Length (le) mm 24.07
Effective Area (Ae) mm2 7.83
Effective Magnetic Volume (Ve) mm3 188.0
Finish Uncoated
Height 0.157" (4.00mm)
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.90.9630
Win Source Part Number 1489271-B64290A0038X038
Ultra Librarian 3D Model Ultra Librarian B64290A0038X038 CAD Model
