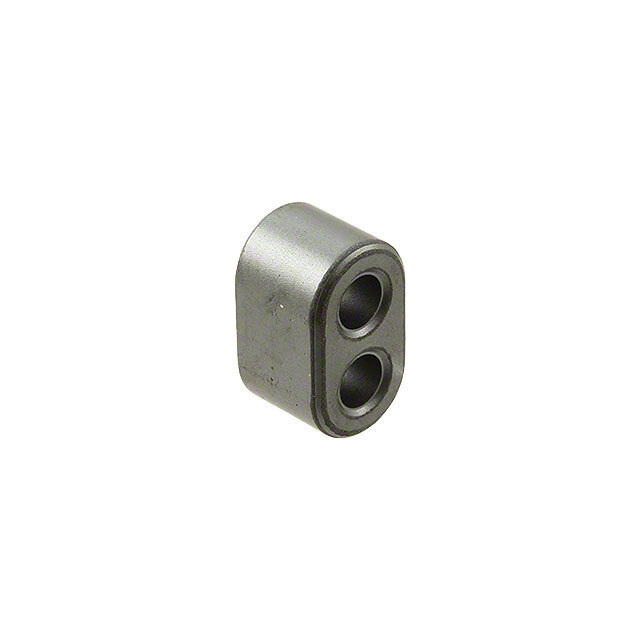

Same model may have multiple batches, images only for reference.
B62152A0004X030 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B62152A0004X030

Part No B62152A0004X030
Manufacturer EPCOS (TDK)
Catalog Ferrite Cores
Description Uncoated N30 Ferrite Core Multi-Hole (2) Type 0.571" (14.50mm) Length 0.335" (8.50mm) Width Diameter 0.327" (8.30mm) Height
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Series MHB2-14.5/8.5/8.3
Packaging Box
Core Type Multi-Hole (2)
Material N30
Inductance Factor (Al) 10 µH
Tolerance ±30%
Gap Ungapped
Initial Permeability (µi) 4300
Core Factor (ΣI/A) mm⁻¹ 0.54
Effective Length (le) mm 15.3
Effective Area (Ae) mm2 28.4
Effective Magnetic Volume (Ve) mm3 435.0
Finish Uncoated
Height 0.327" (8.30mm)
Length 0.571" (14.50mm)
Width 0.335" (8.50mm)
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.90.9630
Win Source Part Number 1489253-B62152A0004X030
Ultra Librarian 3D Model Ultra Librarian B62152A0004X030 CAD Model
