B59980C0120A051 Real Image
Same model may have multiple batches, images only for reference.

B59980C0120A051

Part No B59980C0120A051
Manufacturer EPCOS (TDK)
Catalog PTC Resettable Fuses
Description PTC RESETTABLE 85MA 63V RAD
Datasheet
B59980C0120A051 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer EPCOS (TDK)
Packaging Reel - TR
Status Active
Type Ceramic
Voltage - Max 80V
Current - Max 1A
Current - Hold (Ih) (Max) 85mA
Current - Trip (It) 170mA
Resistance - 25°C (Typ) 25 Ohm
Temperature Range - Operating -40°C to 125°C
Mounting Through Hole

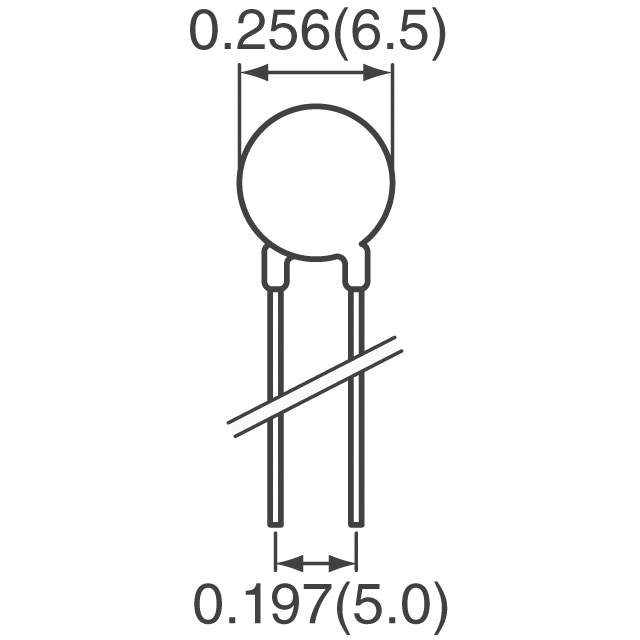

Dimension 0.256" Dia x 0.138" W (6.50mm x 3.50mm)
Height - Seated (Max) 0.394" (10.00mm)
Lead Spacing 0.197" (5.00mm)
Approvals UR
Win Source Part Number 1021633-B59980C0120A051
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B59980C0120A051 CAD Model

Description

The EPCOS B59980C0120A051 is a ceramic circuit protection component with a voltage rating of 80V and a current rating of 1A.

  • Voltage Rating: 80V
  • Current Rating: 1A
  • Resistance @ 25°C: 25 Ohm
  • Approvals: UR
  • Mounting: Through-Hole
  • Lead Spacing: 0.197" (5.00mm)
  • Height When Seated: 0.394" (10.00mm)
  • Dimension: 0.256" Dia x 0.138" W (6.50mm x 3.50mm)
  • Product Status: Active
  • Popularity: Medium
  • Supply and Demand Status: Balance
