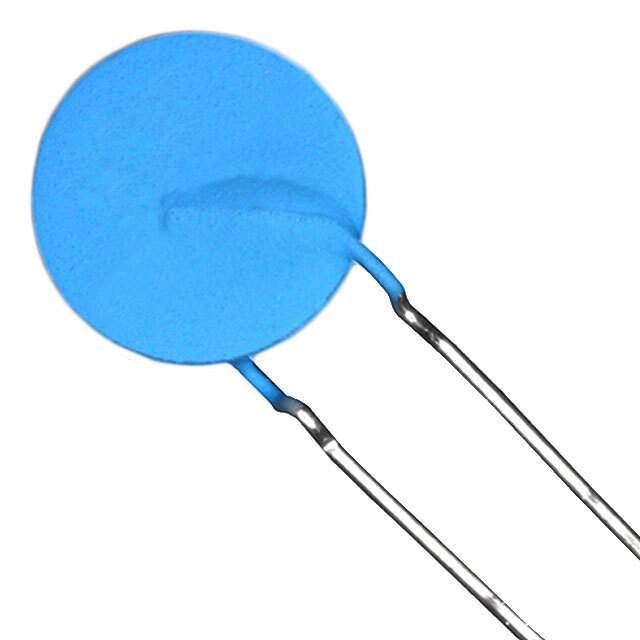

B59940C120A70

Part No B59940C120A70
Manufacturer EPCOS (TDK)
Catalog PTC Resettable Fuses
Description PTC RESETTABLE 450MA 63V RAD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer EPCOS (TDK)
Packaging Bulk
Status Active
Type Ceramic
Voltage - Max 80V
Current - Max 8A
Current - Hold (Ih) (Max) 450mA
Current - Trip (It) 900mA
Resistance - 25°C (Typ) 2.3 Ohm
Temperature Range - Operating -40°C to 125°C
Mounting Through Hole
Dimension 0.866" Dia x 0.138" W (22.00mm x 3.50mm)
Height - Seated (Max) 1.003" (25.50mm)
Lead Spacing 0.197" (5.00mm)
Approvals UR
Win Source Part Number 199980-B59940C120A70
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B59940C120A70 CAD Model

Description

Engineered for high accuracy and durability, the B59940C120A70 is tailored for environments that demand reliable thermal management. Its robust construction ensures long-term performance and protection.

Features and Benefits

  • Precise Temperature Regulation: Ideal for critical monitoring applications.
  • Long-Lasting Durability: Designed for extended operational life.
  • Compact Design: Suitable for applications with limited space.

Applications

  • Industrial automation systems
  • Consumer electronics temperature monitoring
  • Advanced automotive solutions

By choosing the B59940C120A70, engineers can ensure that systems are protected against overheating, maintaining both safety and functionality.
