Same model may have multiple batches, images only for reference.

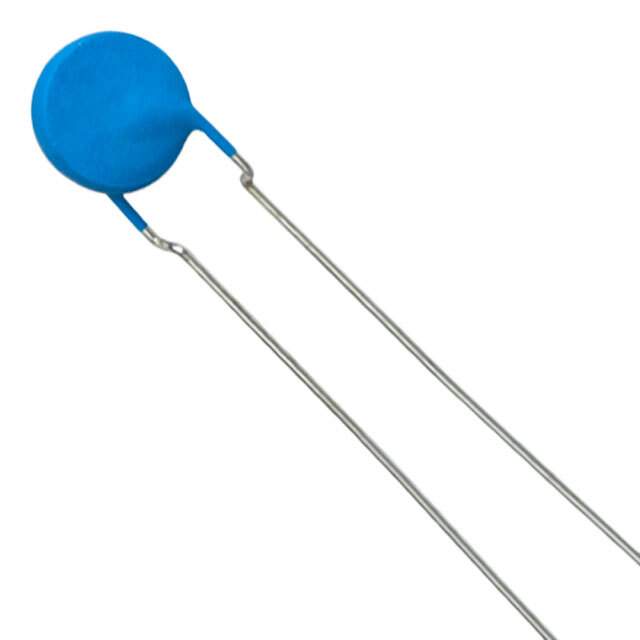

B59890C0160A070 Real Image
Same model may have multiple batches, images only for reference.

B59890C0160A070

Part No B59890C0160A070
Manufacturer EPCOS (TDK)
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 160V 35MA RADIAL / Ceramic PTC Resettable Fuse 160V 35 mA Ih Through Hole Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr EPCOS - TDK Electronics
Package Bulk
Type Ceramic
Voltage - Max 160V
Current - Max 200 mA
Current - Hold (Ih) (Max) 35 mA
Current - Trip (It) 70 mA
Resistance - 25°C (Typ) 150 Ohms
Temperature Range - Operating 0°C ~ 60°C
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.157" Dia x 0.197" T (4.00mm x 5.00mm)
Height - Seated (Max) 0.295" (7.50mm)
Lead Spacing 0.197" (5.00mm)
Approval Agency UR, VDE
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 1341142-B59890C0160A070
Ultra Librarian 3D Model Ultra Librarian B59890C0160A070 CAD Model

Description

The B59890C0160A070 PTC Resettable Fuse is a ceramic type fuse manufactured by .

  • Voltage - Rated: 160V
  • Current - Rated: 200 mA
  • Current - Trip (It): 70 mA
  • Current - Hold (Ih) (Max): 35 mA
  • Size / Dimension: 0.157" Dia x 0.197" T (4.00mm x 5.00mm)
  • Height - Seated (Max): 0.295" (7.50mm)
  • Mounting Type: Through Hole
  • Package / Case: Radial, Disc
  • Operating Temperature: 0°C ~ 60°C
  • ECCN: EAR99
  • Standard Package: 500
  • Approvals: UR, VDE
