Same model may have multiple batches, images only for reference.

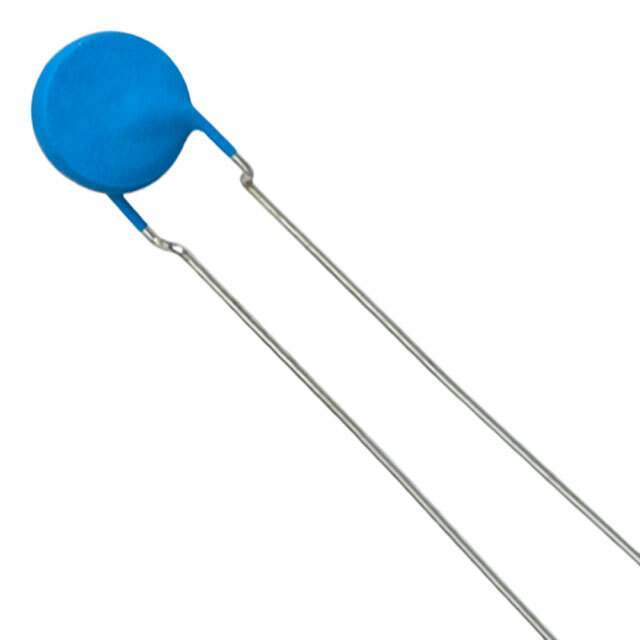

B59890C0120A070EPCOS - TDK Electronics
Same model may have multiple batches, images only for reference.

B59890C0120A070

Part No B59890C0120A070
Manufacturer EPCOS (TDK)
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 265V 30MA RADIAL
Datasheet
B59890C0120A070 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Packaging  Bulk
Part Status Active
Type Ceramic
Voltage - Max 265V
Current - Hold (Ih) (Max) 30 mA
Current - Trip (It) 60 mA
Current - Max 200 mA
Resistance - 25°C (Typ) 150 Ohms
Operating Temperature 0°C ~ 60°C
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.157" Dia x 0.197" T (4.00mm x 5.00mm)
Height - Seated (Max) 0.295" (7.50mm)
Lead Spacing 0.197" (5.00mm)
Ultra Librarian 3D Model Ultra Librarian B59890C0120A070 CAD Model

Description

Ceramic PTC Resettable Fuse 265V 30 mA Ih Through Hole Radial, Disc
