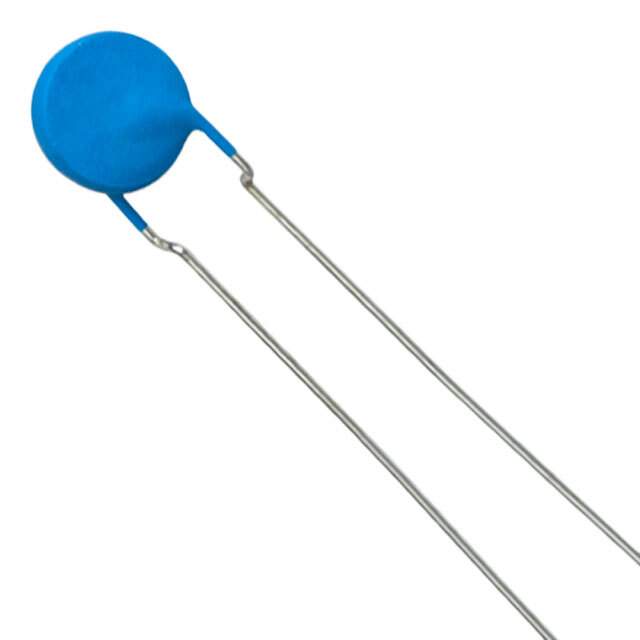

B59870C120A70 Real Image
Same model may have multiple batches, images only for reference.

B59870C120A70

Part No B59870C120A70
Manufacturer EPCOS (TDK)
Catalog PTC Resettable Fuses
Description PTC RESETTABLE 100MA 230V RAD
Datasheet
B59870C120A70 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer EPCOS (TDK)
Packaging Bulk
Status Active
Type Ceramic
Voltage - Max 265V
Current - Max 1A
Current - Hold (Ih) (Max) 100mA
Current - Trip (It) 200mA
Resistance - 25°C (Typ) 25 Ohm
Temperature Range - Operating 0°C to 60°C
Mounting Through Hole
Dimension 0.354" Dia x 0.197" W (9.00mm x 5.00mm)
Height - Seated (Max) 0.492" (12.50mm)
Lead Spacing 0.197" (5.00mm)
Approvals UR
Win Source Part Number 199976-B59870C120A70
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B59870C120A70 CAD Model

Description

Product Features and Benefits

  • Optimal performance in high-frequency circuits.
  • Compact yet powerful design.
  • Highly dependable under harsh conditions.

Applications

  • Wireless communication devices
  • High-frequency oscillators
  • Advanced computing systems

Additional Details

The B59870C120A70 is designed for cutting-edge high-frequency applications, providing robust performance even under extreme temperature fluctuations, ensuring reliable operation in mission-critical systems.
