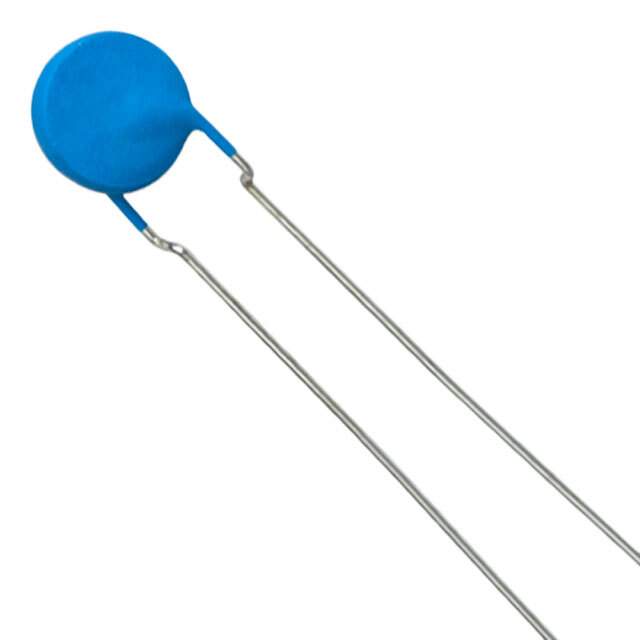

Same model may have multiple batches, images only for reference.

B59870C0120A070

Name: B59870C0120A070
Brand: EPCOS (TDK)
SKU: 1047838
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	B59870C0120A070
Manufacturer	EPCOS (TDK)
Catalog	PTC Resettable Fuses
Description	PTC RESET FUSE 265V 100MA RADIAL / Ceramic PTC Resettable Fuse 265V 100 mA Ih Through Hole Radial, Disc
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>PTC Resettable Fuses
Mfr	EPCOS - TDK Electronics
Package	Bulk
Type	Ceramic
Voltage - Max	265V
Current - Max	1 A
Current - Hold (Ih) (Max)	100 mA
Current - Trip (It)	200 mA
Resistance - 25°C (Typ)	25 Ohms
Temperature Range - Operating	0°C ~ 60°C
Mounting Type	Through Hole
Package / Case	Radial, Disc
Dimension	0.354" Dia x 0.197" T (9.00mm x 5.00mm)
Height - Seated (Max)	0.492" (12.50mm)
Lead Spacing	0.197" (5.00mm)
Approval Agency	UR
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.40.8070
Other Names	495-2613,B59870C120A70Z15,B59870C0120A070-ND,B59870C120A70,B59870C 120A 70,B59870C120A70-ND
Standard Package	500
Win Source Part Number	1047838-B59870C0120A070
Ultra Librarian 3D Model	Ultra Librarian B59870C0120A070 CAD Model

Description

The EPCOS (TDK) 1047838-B59870C0120A070 is a PTC resettable fuse that falls under the category of circuit protection.

Product Category: Circuit Protection
Product Type: Ceramic
Product Shape: Radial
Operating Temperature: 0°C to 60°C
Win Source Part Number: 1047838-B59870C0120A070
Height: 0.492 inches
Thickness: Unspecified
Package: Radial, Disc
Mounting Type: Through-Hole
Maximum Voltage: 265V
Maximum Current: 1A
