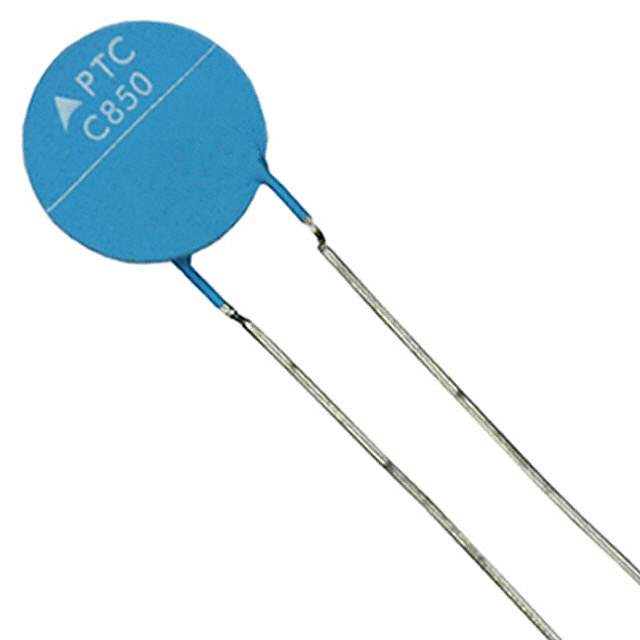

B59850C120A70 Real Image
Same model may have multiple batches, images only for reference.

B59850C120A70

Part No B59850C120A70
Manufacturer EPCOS (TDK)
Catalog PTC Resettable Fuses
Description PTC RESETTABLE 200MA 230V RAD
Datasheet
B59850C120A70 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer EPCOS (TDK)
Packaging Bulk
Status Active
Type Ceramic
Voltage - Max 265V
Current - Max 2.2A
Current - Hold (Ih) (Max) 200mA
Current - Trip (It) 400mA
Resistance - 25°C (Typ) 10 Ohm
Temperature Range - Operating 0°C to 60°C
Mounting Through Hole
Dimension 0.532" Dia x 0.197" W (13.50mm x 5.00mm)
Height - Seated (Max) 0.669" (17.00mm)
Lead Spacing 0.197" (5.00mm)
Approvals UR
Win Source Part Number 199974-B59850C120A70
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian B59850C120A70 CAD Model

Description

Product Features and Benefits

  • High precision in temperature measurement.
  • Resilient against environmental factors.
  • Long operational lifetime.

Applications

  • Home appliances
  • Communication hardware
  • Battery management systems

Additional Details

The B59850C120A70 is designed for applications requiring precise temperature controls. Its robust design ensures it remains unaffected by environmental stressors, providing reliable performance in critical applications.
