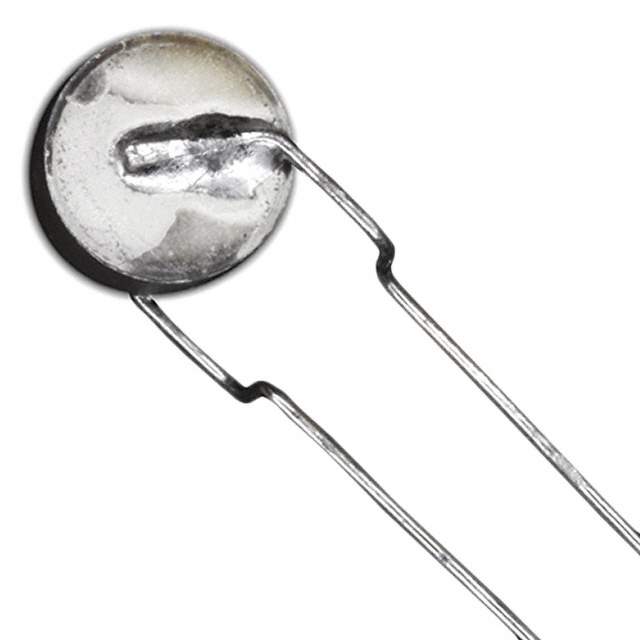

B59774-B115-A70 Real Image
Same model may have multiple batches, images only for reference.

B59774-B115-A70

Part No B59774-B115-A70
Manufacturer EPCOS (TDK)
Catalog PTC Resettable Fuses
Description Thermistor PTC 1.1K Ohm 25% 2-Pin Radial Cardboard Strip
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package Radial
Diameter 8.5 mm
Hold Current 16 mA
Lead Diameter 600 µm
Lead Pitch 5 mm
Max Current Rating 1 A
Maximum Operating Temperature 125 °C
Min Operating Temperature -40 °C
Mount Through Hole
Number of Pins 2
Packaging Bulk
Radiation Hardening No
Resistance 1.1 kΩ
RoHS Compliant
Schedule B 8533210025
Time to Trip 2 s
Trip Current 32 mA
Width 15 mm
Win Source Part Number 997329-B59774-B115-A70
Categories PTC Resettable Fuses
Manufacturer EPCOS (TDK)
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian B59774-B115-A70 CAD Model

Description

This PTC resettable fuse from EPCOS (TDK) is a high-quality electronic component that comes in bulk packaging.

  • Mounting Type: SMD (SMT)
  • Hold Current: 16 mA
  • Resistance: 1.1 kΩ
  • Pins: 2
  • Trip Current: 32 mA
  • Time to Trip: 2 s
  • Maximum Operating Temperature: 125°C
  • Minimum Operating Temperature: -40°C
  • Diameter: 8.5 mm
  • Width: 15 mm
  • Maximum Current: 1 A
  • Lead Pitch: 5 mm
  • RoHS Compliant: Yes
  • Applications: ideal for use in various applications
