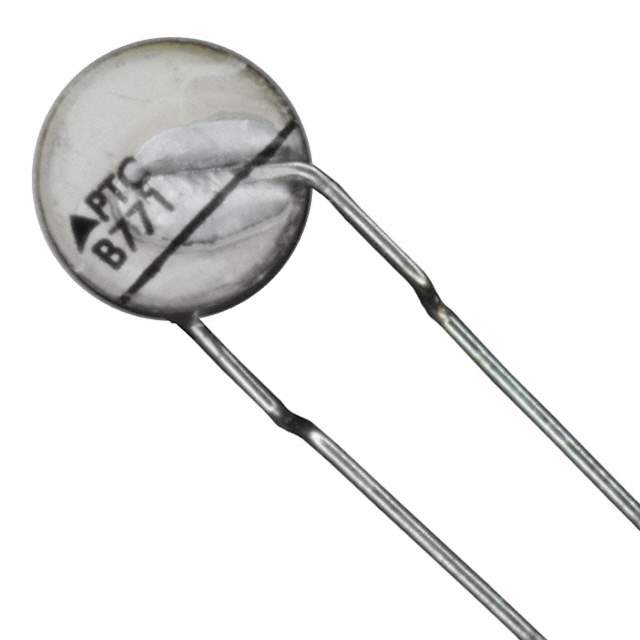

B59771B0120A070 Real Image
Same model may have multiple batches, images only for reference.

B59771B0120A070

Part No B59771B0120A070
Manufacturer EPCOS (TDK)
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 420V RADIAL DISC / Ceramic PTC Resettable Fuse 420V Ih Through Hole Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr EPCOS - TDK Electronics
Series Automotive, AEC-Q200
Package Bulk
Type Ceramic
Voltage - Max 420V
Current - Max 1.4 A
Current - Trip (It) 97 mA
Time to Trip 3 s
Resistance - 25°C (Typ) 120 Ohms
Temperature Range - Operating 0°C ~ 60°C
Mounting Type Through Hole
Package / Case Radial, Disc
Dimension 0.335" Dia x 0.276" T (8.50mm x 7.00mm)
Height - Seated (Max) 0.197" (5.00mm)
Lead Spacing 0.197" (5.00mm)
Approval Agency UL
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Other Names 495-3887,B59771B120A70-ND,B59771B 120A 70,B59771B0120A070-ND,B59771B120A70
Standard Package 1,000
Win Source Part Number 1001086-B59771B0120A070
Ultra Librarian 3D Model Ultra Librarian B59771B0120A070 CAD Model

Description

The 1001086-B59771B0120A070 is a circuit protection PTC resettable fuse with a voltage rating of 420V and a maximum current of 1.4A. It is manufactured by EPCOS - TDK Electronics.

  • Voltage Rating: 420V
  • Maximum Current: 1.4A
  • Current Trip: 97mA
  • Time to Trip: 3 seconds
  • Package: radial, disc package
  • Temperature Range: 0°C to 60°C
  • ECCN: EAR99
