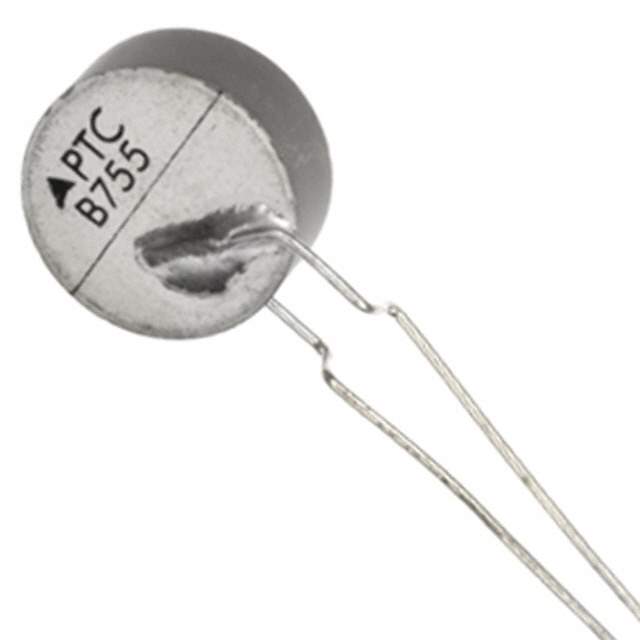

B59755B0115A070 Real Image
Same model may have multiple batches, images only for reference.

B59755B0115A070

Part No B59755B0115A070
Manufacturer EPCOS (TDK)
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 550V RADIAL DISC / Ceramic PTC Resettable Fuse 550V Ih Through Hole Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr EPCOS - TDK Electronics
Package Bulk
Product Status Obsolete
Type Ceramic
Voltage - Max 550V
Current - Max 1.4 A
Current - Trip (It) 55 mA
Time to Trip 3 s
Resistance - 25°C (Typ) 500 Ohms
Temperature Range - Operating 0°C ~ 60°C
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.492" Dia x 0.276" T (12.50mm x 7.00mm)
Height - Seated (Max) 0.650" (16.50mm)
Lead Spacing 0.197" (5.00mm)
Approval Agency UL
Standard Package 500
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 1339821-B59755B0115A070
Ultra Librarian 3D Model Ultra Librarian B59755B0115A070 CAD Model

Description

The B59755B0115A070 is a ceramic PTC resettable fuse manufactured by EPCOS (TDK).

  • Voltage Rating: 550V
  • Maximum Current: 1.4A
  • Current Trip: 55mA
  • Time to Trip: 3s
  • Package: Radial, Disc
  • Diameter: 0.492 inches
  • Thickness: 0.276 inches
  • Lead Spacing: 0.197 inches
  • Height Seated: 0.650 inches
  • Resistance @ 25°C: 500 ohms
  • Mounting Type: Through-Hole
  • Temperature Range: 0°C to 60°C
  • Approvals: UL
