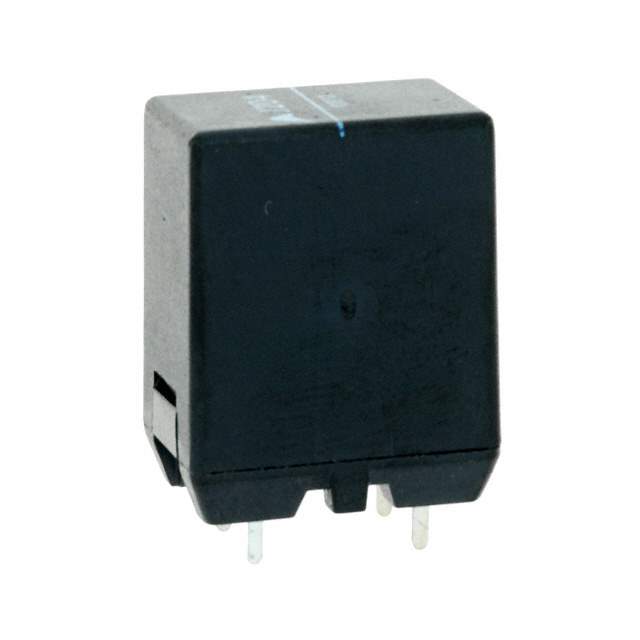

B59201J140B10 Real Image
Same model may have multiple batches, images only for reference.

B59201J140B10

Part No B59201J140B10
Manufacturer EPCOS (TDK)
Catalog Custom Parts (B - D)
Description B59 series 20ohms Radial Lead Spacing: 7.62mm NTC Thermistor
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Approvals UL
Case / Package Radial
Lead Diameter 1 mm
Lead Free Lead Free
Lead Length 3.25 mm
Lead Pitch 7.62 mm
Max Operating Temperature 125 °C
Min Operating Temperature -40 °C
Mount Through Hole
Number of Pins 2
Operating Supply Voltage 550 V
Radiation Hardening No
REACH SVHC No SVHC
Resistance 20 Ω
RoHS Compliant
Tolerance 30 %
Width 19 mm
Win Source Part Number 1211094-B59201J140B10
Categories Custom Parts
Manufacturer EPCOS (TDK)
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian B59201J140B10 CAD Model

Description

The EPCOS (TDK) 1211094-B59201J140B10 is a radial leaded resistor with a resistance of 20Ω and a tolerance of 30%. Bold the product name 1211094-B59201J140B10 and manufacturer EPCOS (TDK).

  • Resistance: 20Ω
  • Tolerance: 30%
  • Operating Supply Voltage: 550V
  • Approvals: UL
  • Pins: Two
  • Width: 19mm
  • Lead-Free: Yes
  • RoHS Compliant: Yes
  • Mounting: Through Hole
  • Lead Pitch: 7.62mm
  • Lead Length: 3.25mm
  • Lead Diameter: 1mm
  • Maximum Operating Temperature: 125°C
  • Minimum Operating Temperature: -40°C
  • Popularity: Popular
  • Supply and Demand Status: Limited
