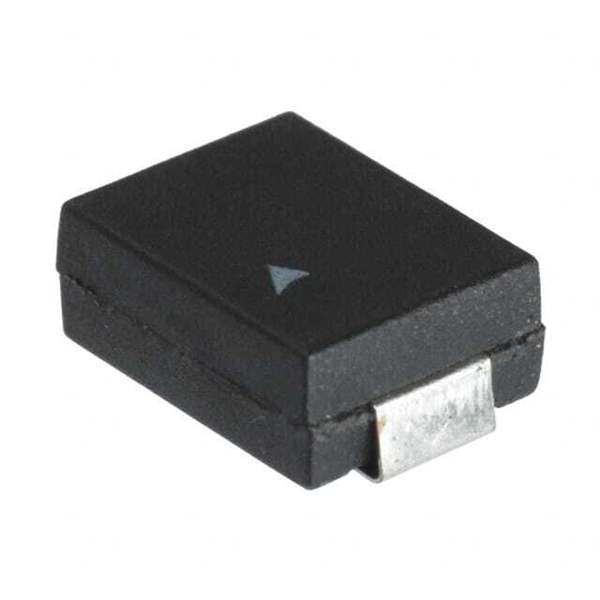

B59115P1080A062 EPCOS (TDK)

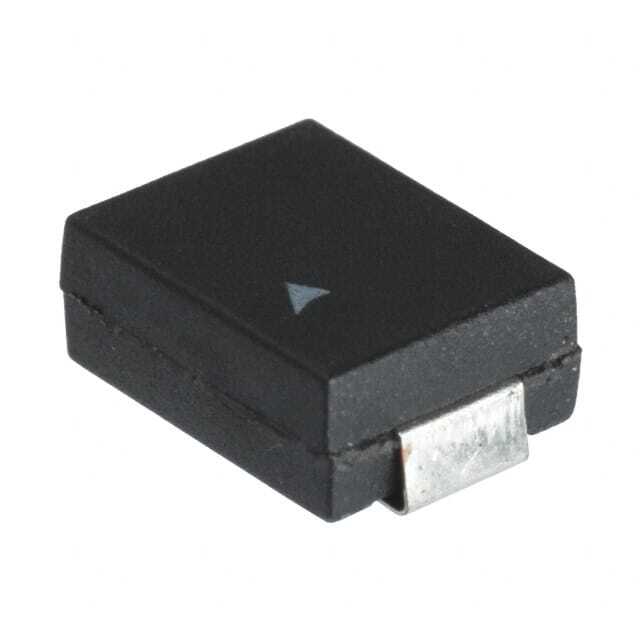

Same model may have multiple batches, images only for reference.

B59115P1080A062

Part No B59115P1080A062
Manufacturer EPCOS (TDK)
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 80V 40MA 3225  /  Ceramic PTC Resettable Fuse 80V 40 mA Ih Surface Mount 3225 (8063 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr EPCOS - TDK Electronics
Series Automotive, AEC-Q200, B59115
Package Tape & Reel
Type Ceramic
Voltage - Max 80V
Current - Max 700 mA
Current - Hold (Ih) (Max) 40 mA
Current - Trip (It) 85 mA
Resistance - 25°C (Typ) 55 Ohms
Temperature Range - Operating -40°C ~ 60°C
Ratings AEC-Q200
Mounting SMD (SMT)
Package / Case 3225 (8063 Metric)
Dimension 0.315" L x 0.248" W (8.00mm x 6.30mm)
Thickness (Max) 0.150" (3.80mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Other Names 495-2419-6,B59115P1080A62Z15,495-2419-2,B59115P1080A62,B59115P1080A 62,495-2419-1
Standard Package 1,000
Win Source Part Number 1047835-B59115P1080A062
Ultra Librarian 3D Model Ultra Librarian B59115P1080A062 CAD Model

Description

The B59115P1080A062 is a ceramic PTC resettable fuse designed for circuit protection. It is manufactured by EPCOS - TDK Electronics.

  • Voltage - Max: 80V
  • Current - Max: 700 mA
  • Current - Hold (Ih) (Max): 40 mA
  • Current - Trip (It): 85 mA
  • Package Type: tape & reel
  • Mounting: SMD (SMT)
  • Thickness (Max): 0.150" (3.80mm)
  • Resistance - 25°C (Typ): 55 Ohms
  • Package: 3225 (8063 Metric)
  • Operating Temperature Range: -40°C ~ 60°C
  • Status: obsolete
  • ECCN: EAR99
