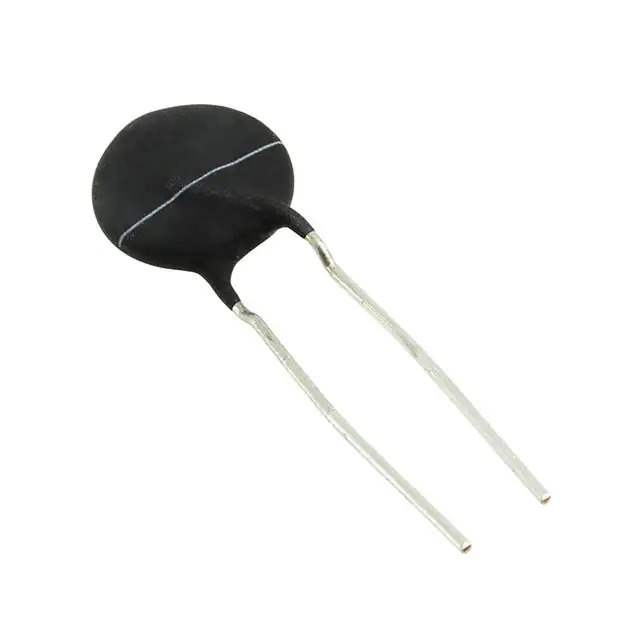

B57235S0509M000 Real Image
Same model may have multiple batches, images only for reference.

B57235S0509M000

Part No B57235S0509M000
Manufacturer EPCOS (TDK)
Catalog Inrush Current Limiters (ICL)
Description ICL 5 OHM 20% 4.2A 9.5MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Inrush Current Limiters (ICL)
Mfr EPCOS (TDK)
Series S235
Package Bulk
Product Status Active
R @ 25°C 5 Ohms
Tolerance ±20%
Current - Steady State Max 4.2 A
Diameter 0.374" (9.50mm)
Lead Spacing 0.197" (5.00mm)
Approval Agency CQC, UL, VDE
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 843166-B57235S0509M000
Ultra Librarian 3D Model Ultra Librarian B57235S0509M000 CAD Model

Description

The B57235S0509M000 is an inrush current limiter integrated circuit from the S235 series.

  • Package: Bulk
  • Tolerance: ±20%
  • Lead Spacing: 0.197" (5.00mm)
  • Diameter: 0.374" (9.50mm)
  • Steady-State Maximum Current: 4.2A
  • Operating Temperature: -40°C to 85°C
  • Approvals: CQC, UL, VDE
