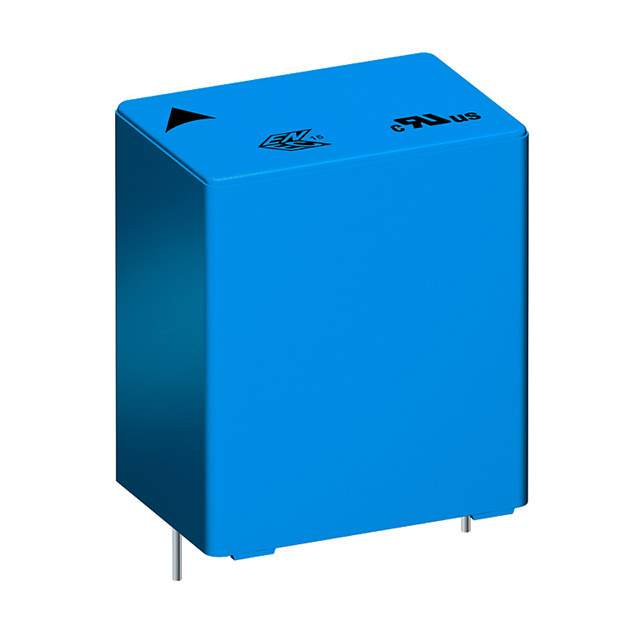

B32924H3475M Real Image
Same model may have multiple batches, images only for reference.

B32924H3475M

Part No B32924H3475M
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr EPCOS - TDK Electronics
Series B3292*H/J - X2 High Humidity
Package Bulk
Capacitance 4.7 µF
Tolerance ±20%
Voltage Rating - AC 305V
Voltage Rating - DC 630V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -40°C ~ 110°C
Mounting Type Through Hole
Package / Case Radial
Dimension 1.240" L x 0.866" W (31.50mm x 22.00mm)
Height - Seated (Max) 1.437" (36.50mm)
Termination PC Pins
Lead Spacing 1.083" (27.50mm)
Applications Automotive; EMI, RFI Suppression
Ratings AEC-Q200, X2
Features 85C/85% Humidity
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0020
Win Source Part Number 1315704-B32924H3475M
Ultra Librarian 3D Model Ultra Librarian B32924H3475M CAD Model

Description

The B3292*H/J - X2 High Humidity film capacitor is a reliable component for automotive and EMI/RFI suppression applications from EPCOS - TDK Electronics.

  • Capacitance: 4.7 µF
  • Tolerance: ±20%
  • Voltage Rating: 305V AC and 630V DC
  • Dielectric Material: Polypropylene (PP) and Metallized
  • Operating Temperature Range: -40°C to 110°C
  • Mounting Type: Through-Hole
  • Package: Radial
  • Lead Spacing: 1.083"
  • Height: 1.437"
  • Rating: AEC-Q200 and X2
