Same model may have multiple batches, images only for reference.

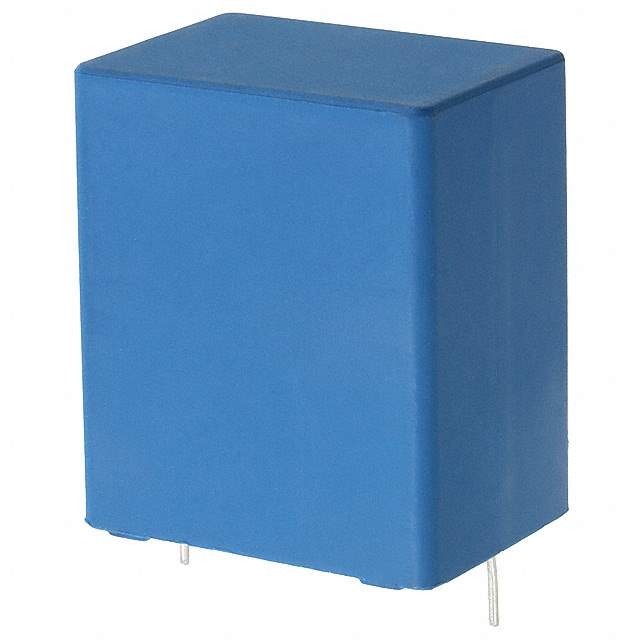

B32774D505K Real Image
Same model may have multiple batches, images only for reference.

B32774D505K

Part No B32774D505K
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 5UF 10% 1.1KVDC RADIAL
Datasheet
B32774D505K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer EPCOS (TDK)
Packaging Bulk
Status Active
Capacitance 5μF
Tolerance ±10%
Voltage Rating - DC 1100V (1.1kV)
Dielectric Material Polypropylene (PP), Metallized
ESR 10.9 mOhm
Temperature Range - Operating -40°C to 105°C
Mounting Through Hole
Dimension 1.240" L x 0.748" W (31.50mm x 19.00mm)
Height - Seated (Max) 1.181" (30.00mm)
Termination PC Pins
Lead Spacing 1.083" (27.50mm)
Applications DC Link, DC Filtering
Features Long Life
Win Source Part Number 199813-B32774D505K
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B32774D505K CAD Model

Description

Product Overview

The B32774D505K is a versatile capacitor, ideal for general-purpose applications in various electronic projects. Its design focuses on consistent and reliable performance.

Features and Benefits

  • Wide applications due to versatile specifications.
  • Compact footprint for easy and flexible installation.
  • Low self-inductance for enhanced performance in high-frequency circuits.

Applications

  • Consumer electronics
  • LED lighting systems
  • Automotive electronics
  • General electronic applications

Additional Details

With its adaptable design and reliable performance metrics, the B32774D505K is a trusted choice for engineers looking to enhance their electronic systems.
