Same model may have multiple batches, images only for reference.

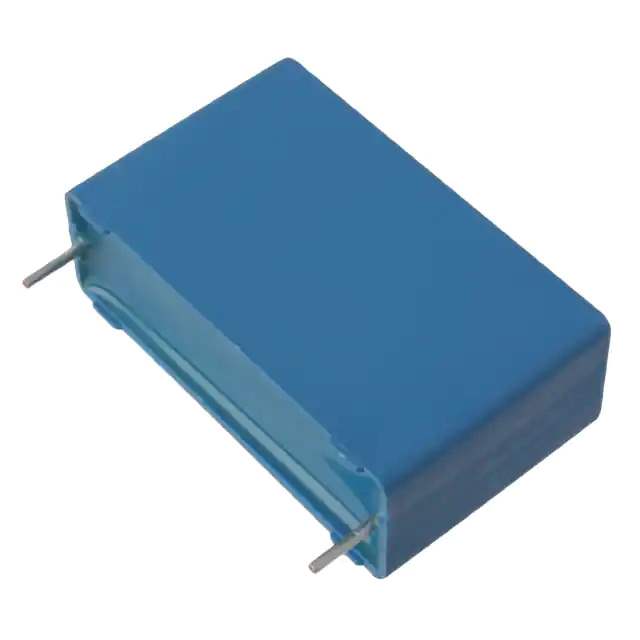

B32674D6225K000 Real Image
Same model may have multiple batches, images only for reference.

B32674D6225K000

Part No B32674D6225K000
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 2.2UF 10% 630VDC RADIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr EPCOS (TDK)
Series B3267* - MKP DC-Link High Power
Package Bulk
Product Status Active
Capacitance 2.2 µF
Tolerance ±10%
Voltage Rating - DC 630V
Dielectric Material Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) 12.4 mOhms
Temperature Range - Operating -40°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 1.240" L x 0.591" W (31.50mm x 15.00mm)
Height - Seated (Max) 0.965" (24.50mm)
Termination PC Pins
Lead Spacing 1.083" (27.50mm)
Applications DC Link, DC Filtering
Ratings AEC-Q200
Features Long Life
Standard Package 240 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0070
Win Source Part Number 853085-B32674D6225K000
Ultra Librarian 3D Model Ultra Librarian B32674D6225K000 CAD Model

Description

The B3267* - MKP DC-Link High Power Capacitor is a high-quality electronic component designed for various applications such as DC Link and DC Filtering.

  • Voltage Rating: 630V DC
  • Capacitance: 2.2 μF
  • Applications: DC Link and DC Filtering
  • Life: long life
  • Equivalent Series Resistance (ESR): 12.4 mOhms
  • Dielectric Material: polypropylene (PP)
  • Construction: metallized
  • Mounting: through hole
  • Package: radial
  • Size: 1.240" L x 0.591" W (31.50mm x 15.00mm)
  • Seated Height: 0.965" (24.50mm)
  • Ratings: AEC-Q200
  • Manufacturer: EPCOS (TDK)
  • Status: active
