Same model may have multiple batches, images only for reference.

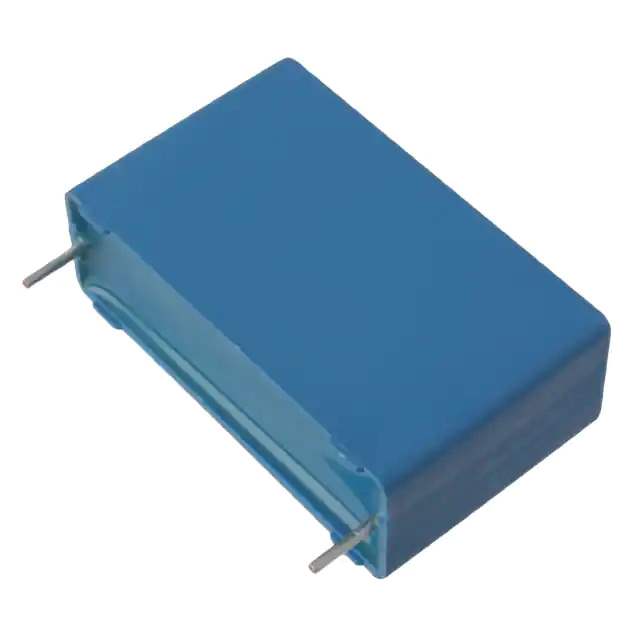

B32673Z6225K000 Real Image
Same model may have multiple batches, images only for reference.

B32673Z6225K000

Part No B32673Z6225K000
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 2.2UF 10% 630VDC RADIAL / 2.2 μF Film Capacitor 310V 630V Polypropylene (PP), Metallized Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr EPCOS (TDK)
Series B3267*Z* - High Current PFC
Package Bulk
Product Status Active
Capacitance 2.2 µF
Tolerance ±10%
Voltage Rating - AC 310V
Voltage Rating - DC 630V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C ~ 110°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 1.043" L x 0.571" W (26.50mm x 14.50mm)
Height - Seated (Max) 1.161" (29.50mm)
Termination PC Pins
Lead Spacing 0.886" (22.50mm)
Ratings AEC-Q200
Standard Package 1,040 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0070
Win Source Part Number 863008-B32673Z6225K000
Ultra Librarian 3D Model Ultra Librarian B32673Z6225K000 CAD Model

Description

The B3267*Z* series high current PFC film capacitor is a reliable and efficient electronic component designed for various applications.

  • Voltage Rating: 310V AC, 630V DC
  • Capacitance: 2.2 μF
  • Tolerance: ±10%
  • Termination: PC Pins
  • Mounting Type: Through-Hole
  • Package Size: 1.043" L x 0.571" W (26.50mm x 14.50mm)
  • Height: 1.161" (29.50mm)
  • Temperature Range: -55°C to 110°C
  • AEC-Q200: Rated
  • Manufacturer: EPCOS (TDK)
  • Product Status: Active
