Same model may have multiple batches, images only for reference.

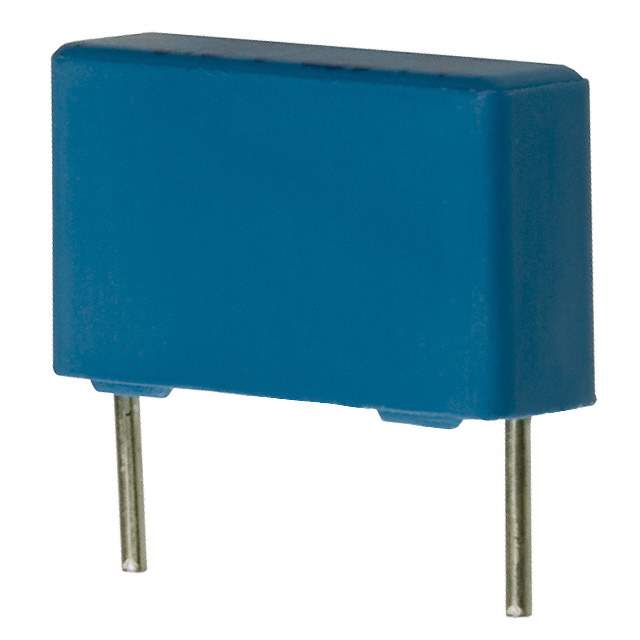

B32672P6105J Real Image
Same model may have multiple batches, images only for reference.

B32672P6105J

Part No B32672P6105J
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 1UF 5% 630VDC RADIAL
Datasheet
B32672P6105J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer EPCOS (TDK)
Packaging Bulk
Status Active
Capacitance 1μF
Tolerance ±5%
Voltage Rating - AC 200V
Voltage Rating - DC 630V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C to 110°C
Mounting Through Hole
Dimension 0.709" L x 0.433" W (18.00mm x 11.00mm)
Height - Seated (Max) 0.728" (18.50mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications Power Factor Correction (PFC)
Win Source Part Number 000036-B32672P6105J
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian B32672P6105J CAD Model

Description

Description

The B32672P6105J capacitor is designed for high-current applications, providing superior durability and electrical performance in challenging environments.

Applications

  • Automotive Electronics
  • Renewable Energy Systems
  • AC Applications
  • Motor Control Systems

Features and Benefits

  • Excellent thermal stability
  • High pulse strength
  • Low dielectric losses
  • High capacitance range

With its advanced design and materials, this capacitor offers exceptional flexibility and efficiency, making it ideal for projects requiring robust electronic components.
