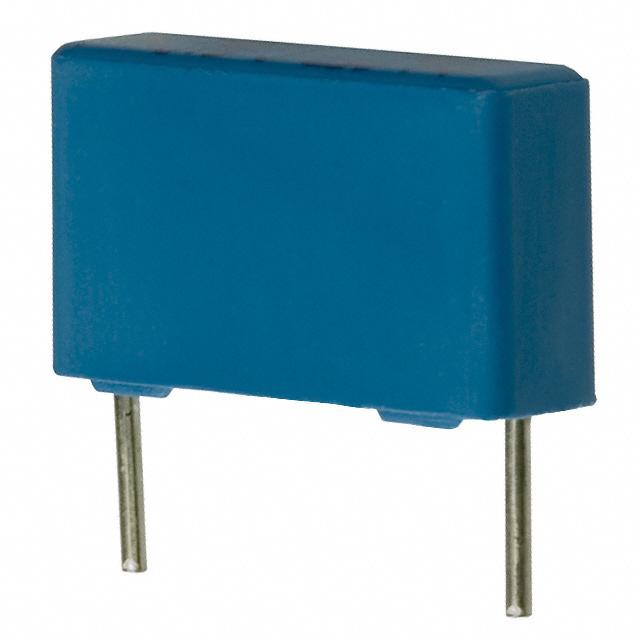

B32672L8392J EPCOS (TDK)
Same model may have multiple batches, images only for reference.

B32672L8392J

Part No B32672L8392J
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 3900PF 5% 2KVDC RADIAL
Datasheet
B32672L8392J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer EPCOS (TDK)
Packaging Bulk
Status Active
Capacitance 3900pF
Tolerance ±5%
Voltage Rating - AC 700V
Voltage Rating - DC 2000V (2kV)
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C to 110°C
Mounting Through Hole
Dimension 0.709" L x 0.197" W (18.00mm x 5.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications High Frequency, Switching; High Pulse, DV/DT
Win Source Part Number 112163-B32672L8392J
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B32672L8392J CAD Model

Description

Features and Benefits

  • Flat design for space-saving installation.
  • Quickly adjustable to different operational environments.
  • Self-healing and low loss factor.

Applications

  • Wind turbine power electronics.
  • AC filters.
  • Audio crossover networks.

Additional Details

The B32672L8392J capacitor combines versatility with efficiency, making it suitable for a wide array of applications from renewable energy to consumer electronics. Its self-healing film construction ensures resilience and longstanding performance in harsh conditions.
