Same model may have multiple batches, images only for reference.

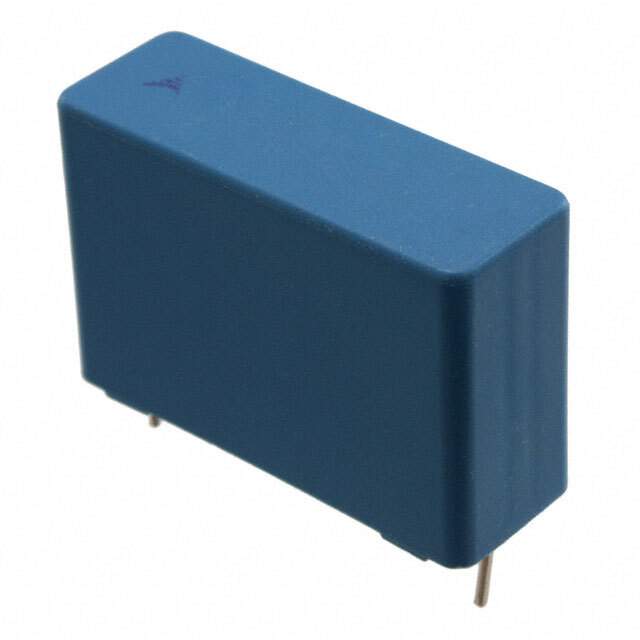

B32654A1683K000 Real Image
Same model may have multiple batches, images only for reference.

B32654A1683K000

Part No B32654A1683K000
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 0.068UF 10% 1.6KVDC RAD / 0.068 µF Film Capacitor 500V 1600V (1.6kV) Polypropylene (PP), Metallized Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr EPCOS - TDK Electronics
Series B3265* - MKP General Purpose
Package Bulk
Capacitance 0.068 µF
Tolerance ±10%
Voltage Rating - AC 500V
Voltage Rating - DC 1600V (1.6kV)
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C ~ 100°C
Mounting Type Through Hole
Package / Case Radial
Dimension 1.240" L x 0.433" W (31.50mm x 11.00mm)
Height - Seated (Max) 0.827" (21.00mm)
Termination PC Pins
Lead Spacing 1.083" (27.50mm)
Applications DC Link, DC Filtering; High Pulse, DV/DT
Ratings AEC-Q200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0070
Other Names B32654A1683K,B32654A1683K-ND,B32654A1683K000-ND,495-77152
Standard Package 320
Win Source Part Number 1137321-B32654A1683K000
Ultra Librarian 3D Model Ultra Librarian B32654A1683K000 CAD Model

Description

The EPCOS (TDK) film capacitor is a high-quality component that is designed for use in a range of applications.

  • Capacitance: 0.068 µF
  • Voltage Rating: 1600V (1.6kV)
  • Applications: DC link, DC filtering; high pulse, DV/DT applications
  • Mounting Type: Through Hole
  • Package: Radial
  • Series: B3265* - MKP General Purpose
  • AEC-Q200: Rated
  • Temperature Range: -55°C to 100°C
