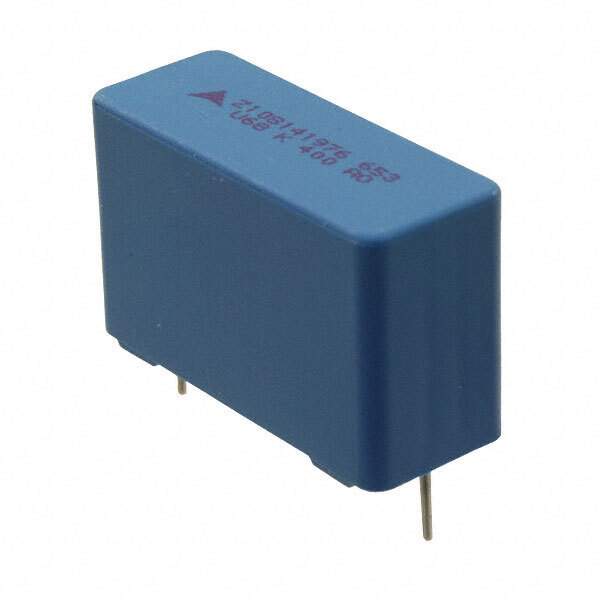

B32653A8103J000

Part No B32653A8103J000
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 10000PF 5% 2KVDC RADIAL
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer EPCOS (TDK)
Packaging Bulk
Status Active
Capacitance 10000pF
Tolerance ±5%
Voltage Rating - AC 1000V (1kV)
Voltage Rating - DC 2000V (2kV)
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C to 100°C
Mounting Through Hole
Dimension 1.043" L x 0.413" W (26.50mm x 10.50mm)
Height - Seated (Max) 0.807" (20.50mm)
Termination PC Pins
Lead Spacing 0.886" (22.50mm)
Applications DC Link, DC Filtering; High Pulse, DV/DT
Win Source Part Number 048821-B32653A8103J000
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian B32653A8103J000 CAD Model

Description

Description

Engineered for advanced electronic systems, the B32653A8103J000 capacitor provides superior performance with a focus on efficiency. It is suitable for high-reliability applications, assuring stability and durability.

Applications

  • Electric vehicle systems
  • Smart grid technologies
  • Uninterruptible power supplies (UPS)

Features and Benefits

  • Rapid charge and discharge cycles
  • High power density
  • Low thermal resistance
  • Compact footprint

Additional Details

With advanced materials and manufacturing processes, this capacitor delivers excellent performance even under the most challenging conditions, aligning with the needs of modern electronic applications.
