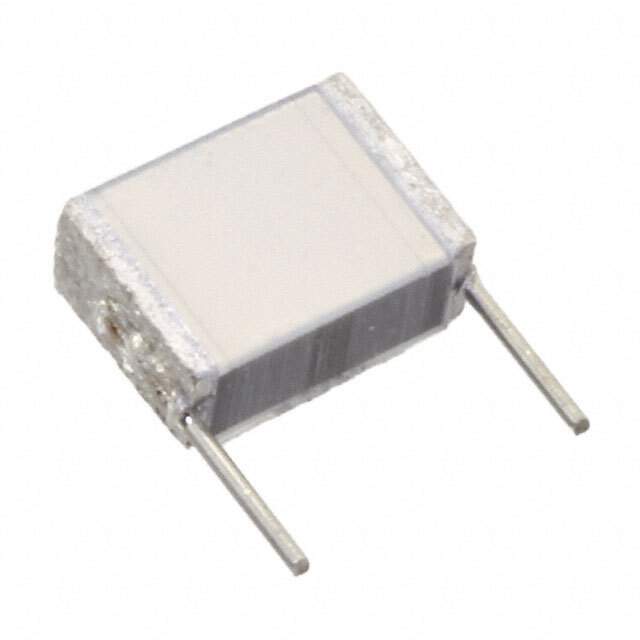

The B32560J1684K000 is a metallized polypropylene film capacitor manufactured by EPCOS (TDK). It is designed for a wide range of applications requiring stable capacitance, high reliability, and long operational life.

Applications

• Power electronics
• SMPS (Switch Mode Power Supplies)
• Lighting ballasts
• Motor control circuits
• Energy storage
• Filtering

Features

• Metallized polypropylene film dielectric
• Self-healing properties
• High pulse strength
• Low ESR (Equivalent Series Resistance)
• Flame retardant plastic case

Benefits

• Stable capacitance over a wide temperature range.
• Long operational life due to self-healing properties.
• High reliability in demanding applications.
• Low losses due to low ESR.
• Safety in case of overvoltage or failure due to self-healing.

Additional Details

The B32560J1684K000 capacitor utilizes a metallized polypropylene film as its dielectric, which provides excellent electrical characteristics and long-term stability. The self-healing properties allow the capacitor to recover from minor insulation breakdowns, extending its operational life. The low ESR minimizes power losses, making it suitable for high-frequency applications. The flame-retardant case provides an additional layer of safety.

Specific parameters of the B32560J1684K000 capacitor typically include:

• Capacitance Value: 0.68 uF (0.68 microfarads)
• Voltage Rating: 160V DC
• Tolerance: 10%
• Operating Temperature: -40°C to +105°C
• Lead Spacing: Varies depending on the specific package
