Same model may have multiple batches, images only for reference.

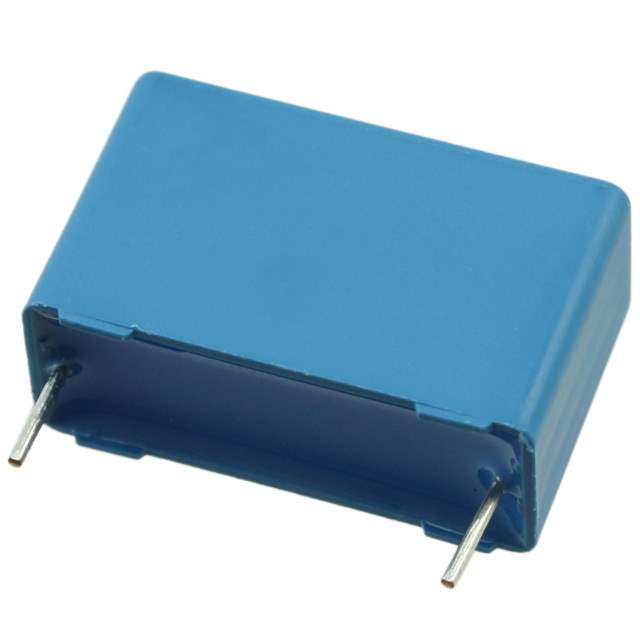

B32523Q6224K189 Real Image
Same model may have multiple batches, images only for reference.

B32523Q6224K189

Part No B32523Q6224K189
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 0.22UF 10% 400VDC RAD / 0.22 µF Film Capacitor 200V 400V Polyester, Polyethylene Terephthalate (PET), Metallized Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr EPCOS - TDK Electronics
Series B3252* - MKT General Purpose
Package Tape & Reel (TR),Cut Tape (CT)
Capacitance 0.22 µF
Tolerance ±10%
Voltage Rating - AC 200V
Voltage Rating - DC 400V
Dielectric Material Polyester, Polyethylene Terephthalate (PET), Metallized
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Through Hole
Package / Case Radial
Dimension 1.043" L x 0.236" W (26.50mm x 6.00mm)
Height - Seated (Max) 0.591" (15.00mm)
Termination PC Pins
Lead Spacing 0.886" (22.50mm)
Applications Automotive; EMI, RFI Suppression
Ratings AEC-Q200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0070
Other Names 495-75691-2,B32523Q6224K189-ND,495-75691-1
Standard Package 700
Win Source Part Number 1145849-B32523Q6224K189
Ultra Librarian 3D Model Ultra Librarian B32523Q6224K189 CAD Model

Description

The B32523Q6224K189 from EPCOS (TDK) is a capacitor in the Film Capacitors category with a capacitance of 0.22 µF and a tolerance of ±10%.

  • Category: Film Capacitors
  • Capacitance: 0.22 µF
  • Tolerance: ±10%
  • Voltage Rating (AC): 200V AC
  • Voltage Rating (DC): 400V DC
  • Package: Radial
  • Height: 0.591" (15.00mm)
  • Dimension: 1.043" L x 0.236" W (26.50mm x 6.00mm)
  • Temperature Range: -55°C ~ 125°C
  • Dielectric Material: Polyester, Polyethylene Terephthalate (PET), Metallized
  • AEC-Q200: Yes
  • REACH: Unaffected
  • Alternative Part Numbers: 495-75691-2, B32523Q6224K189-ND, and 495-75691-1
