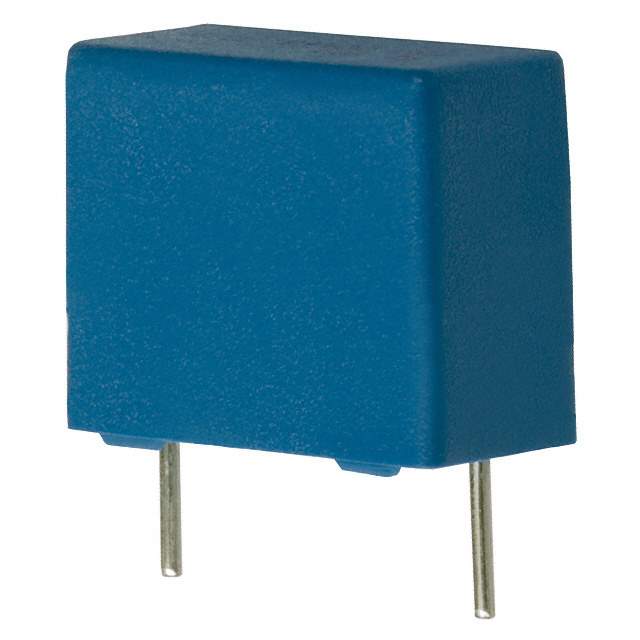

B32522C3105K289 Real Image
Same model may have multiple batches, images only for reference.

B32522C3105K289

Part No B32522C3105K289
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 1UF 10% 250VDC RADIAL
Datasheet
B32522C3105K289 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer EPCOS (TDK)
Packaging AMMO PACKAGE
Status Active
Capacitance 1μF
Tolerance ±10%
Voltage Rating - AC 160V
Voltage Rating - DC 250V
Dielectric Material Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked
Temperature Range - Operating -55°C to 125°C
Mounting Through Hole
Dimension 0.709" L x 0.335" W (18.00mm x 8.50mm)
Height - Seated (Max) 0.571" (14.50mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications Automotive; EMI, RFI Suppression
Win Source Part Number 199594-B32522C3105K289
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B32522C3105K289 CAD Model

Description

Product Overview

The B32522C3105K289 capacitor offers superior performance with its innovative design, tailored for high-frequency and high-stress environments. Its robust capabilities make it indispensable in various electronic projects.

Features & Benefits

  • Capacitance: 1.0 μF
  • Voltage Rating: 630 VDC
  • Reliable and Durable: Built for long-lasting performance
  • High Pulse Load Capability: Can withstand high surge currents
  • Wide Temperature Range: Ensures versatile use in varied conditions

Applications

  • Audio Equipment
  • Power Conditioning
  • HVAC Systems
  • Home Appliances
  • Pulse Generators
