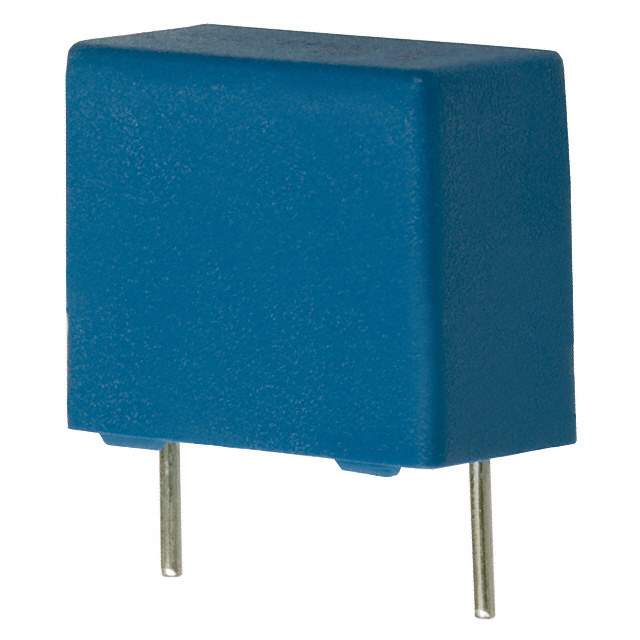

B32522C3105K000 Real Image
Same model may have multiple batches, images only for reference.

B32522C3105K000

Part No B32522C3105K000
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 1UF 10% 250VDC RADIAL
Datasheet
B32522C3105K000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer EPCOS (TDK)
Packaging Bulk
Status Active
Capacitance 1μF
Tolerance ±10%
Voltage Rating - AC 160V
Voltage Rating - DC 250V
Dielectric Material Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked
Temperature Range - Operating -55°C to 125°C
Mounting Through Hole
Dimension 0.709" L x 0.335" W (18.00mm x 8.50mm)
Height - Seated (Max) 0.571" (14.50mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications Automotive; EMI, RFI Suppression
Win Source Part Number 199593-B32522C3105K000
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B32522C3105K000 CAD Model

Description

Product Overview

The B32522C3105K000 is a premium polypropylene film capacitor, ideal for high-voltage and high-pulse applications. With its robust construction, it offers unparalleled performance in various demanding environments.

Features & Benefits

  • Capacitance: 1.0 μF
  • Voltage Rating: 630 VDC
  • High-Temperature Tolerance: Operates efficiently under high temperatures
  • Stable Over Time: Excellent stability and reliability over the long term

Applications

  • AC Motor Controls
  • Pulse Circuits
  • Resonant Circuits
  • High-Voltage Power Supplies
  • Industrial Electronics
