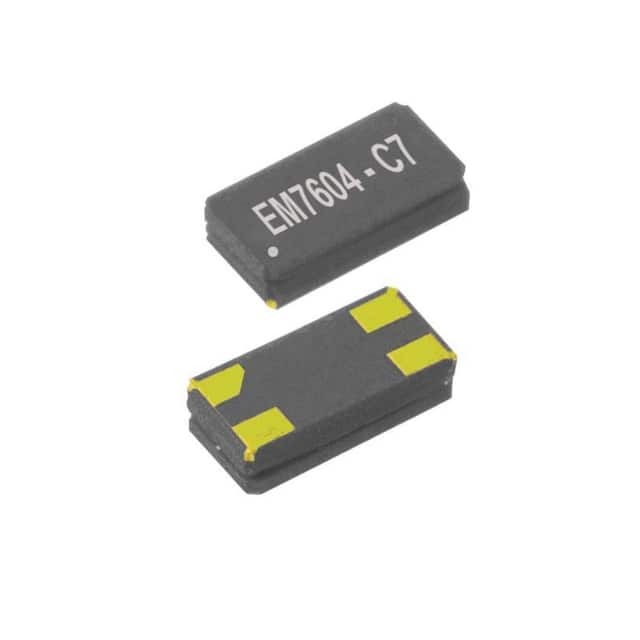

EM7604V20SCP4B+ EM Microelectronic
Same model may have multiple batches, images only for reference.

EM7604V20SCP4B+

Part No EM7604V20SCP4B+
Manufacturer EM Microelectronic
Catalog Oscillators
Description CRYSTAL 32.6780KHZ SMD / 32.768 kHz XO (Standard) CMOS Oscillator 1.2V ~ 5.5V Enable/Disable 4-SMD, No Lead
Datasheet
EM7604V20SCP4B+ Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr EM Microelectronic
Series EM7604-C7
Package Tape & Reel
Base Resonator Crystal
Type XO (Standard)
Frequency 32.768 kHz
Function Enable/Disable
Output CMOS
Voltage - Supply 1.2V ~ 5.5V
Temperature Range - Operating -10°C ~ 85°C
Current - Supply (Max) 1mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.126" L x 0.061" W (3.20mm x 1.50mm)
Height - Seated (Max) 0.039" (1.00mm)
Base Product Number EM7604
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 2651-EM7604V20SCP4B+TR,2651-EM7604V20SCP4B+DKR,2651-EM7604V20SCP4B+CT,IC-5168
Standard Package 1,000
Win Source Part Number 1014531-EM7604V20SCP4B+
Ultra Librarian 3D Model Ultra Librarian EM7604V20SCP4B+ CAD Model

Description

The EM Microelectronic EM7604-C7 series oscillator is a CMOS output type oscillator with a frequency of 32.768 kHz.

  • Type: XO (Standard)
  • Package: Tape and Reel
  • Height: 0.039" (1.00mm)
  • Temperature Range: -10°C to 85°C
  • Voltage: 1.2V to 5.5V
  • Current Supply: 1mA
  • Dimension: 0.126" L x 0.061" W (3.20mm x 1.50mm)
  • Function: Enable/Disable
