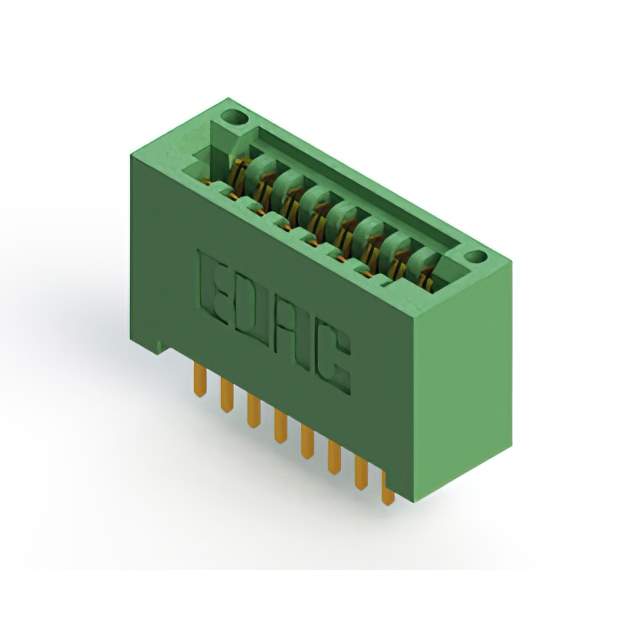

345-016-521-201 Real Image
Same model may have multiple batches, images only for reference.

345-016-521-201

Part No 345-016-521-201
Manufacturer EDAC Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FMALE 16POS 0.100 / 16 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
Datasheet
345-016-521-201 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Card Edge Connectors - Edgeboard Connectors
Mfr EDAC Inc.
Series 345
Package Bulk
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions/Bay/Row 8
Number of Positions 16
Card Thickness 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows 2
Pitch 0.100" (2.54mm)
Read Out Dual
Mounting Type Through Hole
Termination Solder
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Contact Type Cantilever
Color Green
Temperature Range - Operating -40°C ~ 105°C
Material - Insulation Polyester Thermoplastic
Termination Rows 2
Base Product Number 345-016
Standard Package 50
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1349974-345-016-521-201
Ultra Librarian 3D Model Ultra Librarian 345-016-521-201 CAD Model

Description

The 1349974-345-016-521-201 is a female card edge connector from EDAC Inc.

  • Connector Type: Card Edge, Female
  • Positions: 16
  • Pitch: 0.100” (2.54mm)
  • Contact Type: Cantilever
  • Contact Finish: Gold
  • Contact Finish Thickness: 10.0μin (0.25μm)
  • Card Thickness: 0.054” ~ 0.070” (1.37mm ~ 1.78mm)
  • Number of Positions per Row: 8
  • Operating Temperature: -40°C to 105°C
