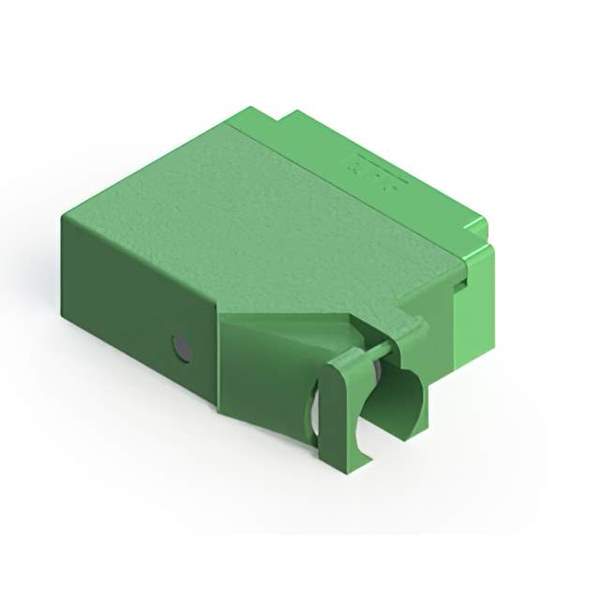

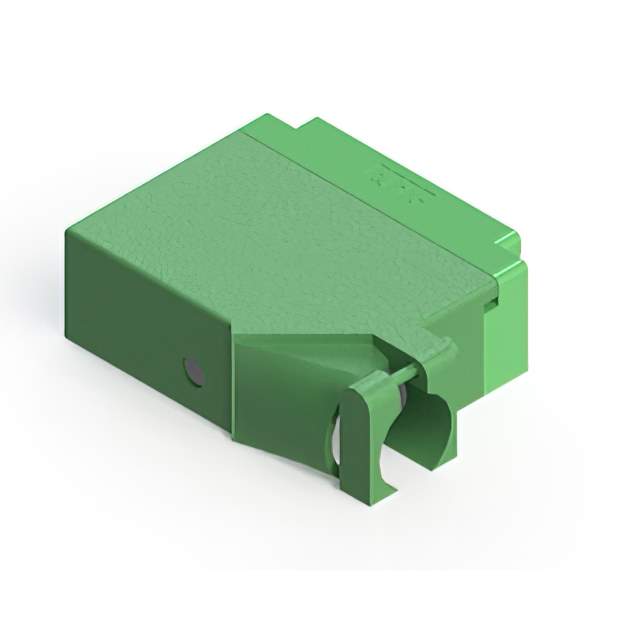

516-090-000-520 Real Image
Same model may have multiple batches, images only for reference.

516-090-000-520

Part No 516-090-000-520
Manufacturer EDAC Inc.
Catalog Backplane Connectors
Description 516 SERIES RACK & PANEL CONNECTO / 90 Position Housing for Non-Gendered Contacts Connector Green Free Hanging (In-Line) Rack and Panel
Datasheet
516-090-000-520 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors - Housings
Mfr EDAC Inc.
Series 516
Package Bulk
Connector Type Housing for Non-Gendered Contacts
Connector Style Rack and Panel
Number of Positions 90
Pitch 0.150" (3.81mm)
Number of Rows 13
Mounting Type Free Hanging (In-Line)
Connector Usage Plug
Features Backshell
Color Green
Note Contacts Not Included
Base Product Number 516-090
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4030
Other Names 151-516-090-000-520
Standard Package 25
Win Source Part Number 1034875-516-090-000-520
Ultra Librarian 3D Model Ultra Librarian 516-090-000-520 CAD Model

Description

The 516 series from EDAC Inc. is a backplane connector housing that has 90 positions and a pitch of 0.150" (3.81mm).

  • Positions: 90
  • Pitch: 0.150" (3.81mm)
  • Color: green
  • Feature: backshell
  • Connector Type: housing for non-gendered contacts
  • Rows: 13
  • Package: bulk
  • Contacts Included: no
  • Connector Style: rack and panel
  • Standard Package: 25
  • Connector Usage: plug
  • Mounting Type: free hanging (in-line)
  • MSL Level: 1 (unlimited)
  • REACH Status: REACH unaffected
  • HTSUS: 8536.69.4030
  • Other Names: 151-516-090-000-520
  • Base Product Number: 516-090
