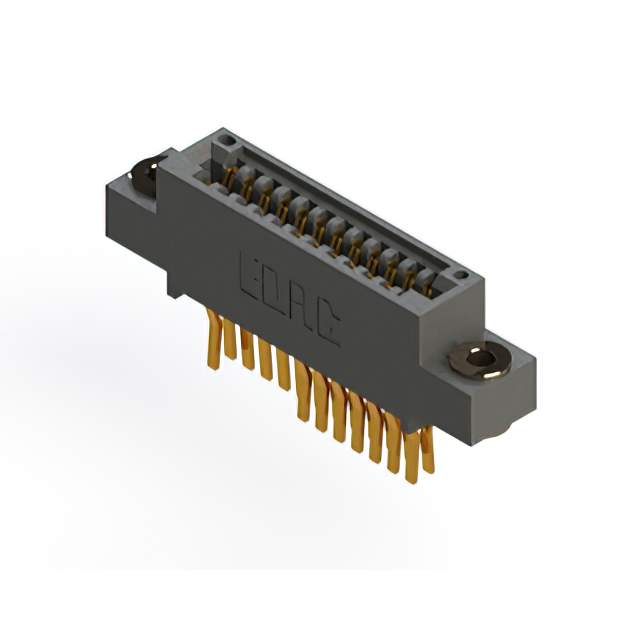

395-024-560-503 Real Image
Same model may have multiple batches, images only for reference.

395-024-560-503

Part No 395-024-560-503
Manufacturer EDAC Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description 395 SERIES (.100" (2.54MM) CONTA / 24 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
Datasheet
395-024-560-503 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr EDAC Inc.
Series 395
Package Box
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions/Bay/Row 12
Number of Positions 24
Card Thickness 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows 2
Pitch 0.100" (2.54mm)
Read Out Dual
Features Card Extender
Mounting Type Board Edge, Straddle Mount
Termination Solder
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Contact Type Cantilever
Color Black
Flange Feature Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia
Temperature Range - Operating -40°C ~ 105°C
Material - Insulation Polyester Thermoplastic
Termination Rows 2
Base Product Number 395-024
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 151-395-024-560-503
Standard Package 25
Win Source Part Number 1008367-395-024-560-503
Ultra Librarian 3D Model Ultra Librarian 395-024-560-503 CAD Model

Description

The 395-024-560-503 card edge connector is a female connector with a 24-position cantilever contact type and is manufactured by EDAC Inc.

  • Series: 395
  • Pitch: 0.100" (2.54mm)
  • Color: Black
  • Contact Material: Copper Alloy
  • Insulation Material: Polyester Thermoplastic
  • Card Type: Dual-Edge
  • Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
  • Flange Feature: Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia
  • Mounting Type: Board Edge or Straddle Mount
  • Temperature Range: -40°C ~ 105°C
  • RoHS Compliant: Yes
