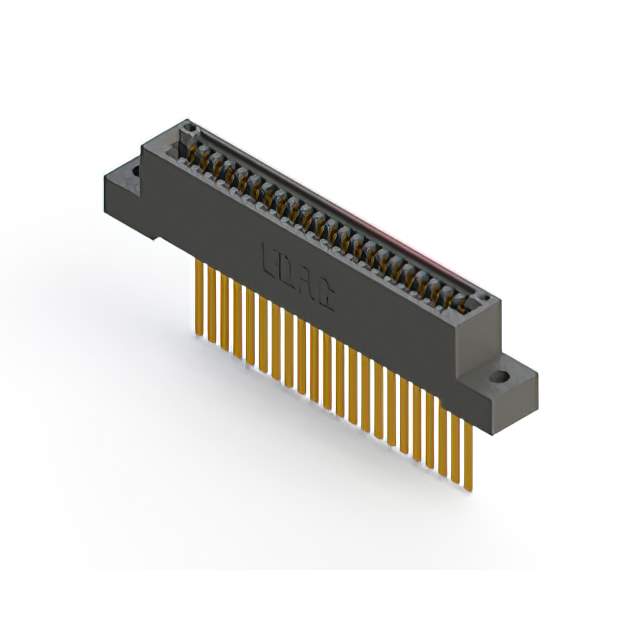

Part No 395-022-544-102
Manufacturer EDAC Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description 395 SERIES (.100" (2.54MM) CONTA / 22 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
Datasheet
395-022-544-102 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr EDAC Inc.
Series 395
Package Box
Card Type Non Specified - Single Edge
Gender Female
Number of Positions/Bay/Row 22
Number of Positions 22
Card Thickness 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows 1
Pitch 0.100" (2.54mm)
Read Out Single
Mounting Type Through Hole
Termination Wire Wrap
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Contact Type Cantilever
Color Black
Flange Feature Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Temperature Range - Operating -40°C ~ 105°C
Material - Insulation Polyester Thermoplastic
Termination Rows 1
Base Product Number 395-022
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 151-395-022-544-102
Standard Package 25
Win Source Part Number 1002610-395-022-544-102
Ultra Librarian 3D Model Ultra Librarian 395-022-544-102 CAD Model

Description

The 1002610-395-022-544-102 is a female card edge connector from EDAC Inc.

  • Series: 395
  • Number of Positions: 22
  • Pitch: 0.100" (2.54mm)
  • Contact Type: Cantilever
  • Termination: Wire Wrap
  • Contact Finish: Gold with a thickness of 10.0µin (0.25µm)
  • Contact Material: Copper Alloy
  • Color: Black
  • Insulation Material: Polyester Thermoplastic
  • Mounting Type: Through Hole
  • Temperature Range: -40°C ~ 105°C
  • Package: Box
  • Standard Package: 25
  • Card Type: Non-specified Single Edge
  • Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
  • Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
  • Readout: Single
