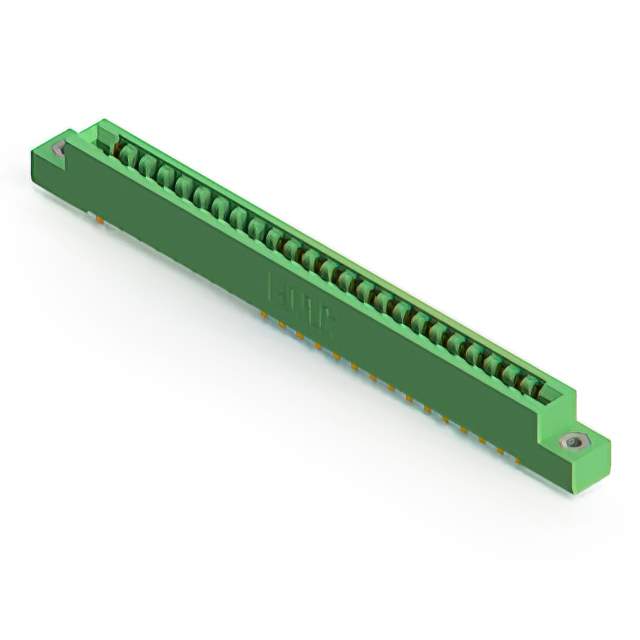

307-048-522-207 Real Image
Same model may have multiple batches, images only for reference.

307-048-522-207

Part No 307-048-522-207
Manufacturer EDAC Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description 307 SERIES (.156" (3.96MM) CONTA / 48 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
Datasheet
307-048-522-207 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr EDAC Inc.
Series 307
Package Box
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions/Bay/Row 24
Number of Positions 48
Card Thickness 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows 2
Pitch 0.156" (3.96mm)
Read Out Dual
Mounting Type Through Hole
Termination Solder
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Contact Type Semi Bellows
Color Green
Flange Feature Flush Mount, Top Opening, Threaded Insert, M3
Temperature Range - Operating -40°C ~ 105°C
Material - Insulation Polyester Thermoplastic
Termination Rows 2
Base Product Number 307-048
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 151-307-048-522-207
Standard Package 25
Win Source Part Number 989642-307-048-522-207
Ultra Librarian 3D Model Ultra Librarian 307-048-522-207 CAD Model

Description

The 307-048-522-207 card edge connector is a female connector with a 48-position semi-bellows contact type and is manufactured by EDAC Inc.

  • Positions: 48
  • Contact Type: Semi-Bellows
  • Series: 307
  • Pitch: 0.156" (3.96mm)
  • Color: Green
  • Material: Copper Alloy
  • Insulation Material: Polyester Thermoplastic
  • Card Type: Dual-Edge
  • Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
  • Flange Feature: Flush Mount, Top Opening, Threaded Insert, M3
  • Mounting Type: Through Hole
  • Temperature Range: -40°C ~ 105°C
  • RoHS Compliant: Yes
