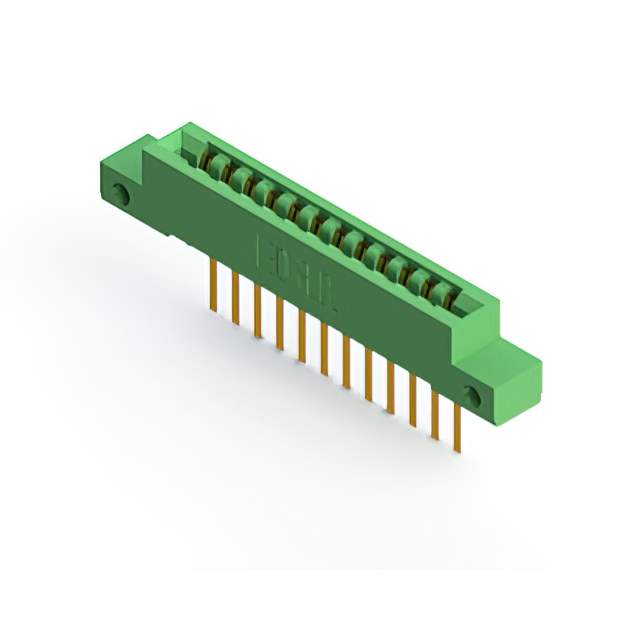

307-012-545-112

Part No 307-012-545-112
Manufacturer EDAC Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description 307 SERIES (.156" (3.96MM) CONTA / 12 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
Datasheet
307-012-545-112 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr EDAC Inc.
Series 307
Package Box
Card Type Non Specified - Single Edge
Gender Female
Number of Positions/Bay/Row 12
Number of Positions 12
Card Thickness 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows 1
Pitch 0.156" (3.96mm)
Read Out Single
Mounting Type Through Hole
Termination Wire Wrap
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Contact Type Semi Bellows
Color Green
Flange Feature Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Temperature Range - Operating -40°C ~ 105°C
Material - Insulation Polyester Thermoplastic
Termination Rows 1
Base Product Number 307-012
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 151-307-012-545-112
Standard Package 25
Win Source Part Number 1216114-307-012-545-112
Ultra Librarian 3D Model Ultra Librarian 307-012-545-112 CAD Model

Description

The 1216114-307-012-545-112 is a card edge connector manufactured by EDAC Inc.

  • Number of Positions: 12
  • Type: Single Edge Card
  • Pitch: 0.156 inches (3.96mm)
  • Mounting Type: Through Hole
  • Contact Type: Semi Bellows
  • Contact Finish: Gold
  • Contact Finish Thickness: 10.0μin (0.25μm)
  • Insulation Material: Polyester Thermoplastic
  • Temperature Range: -40°C to 105°C
