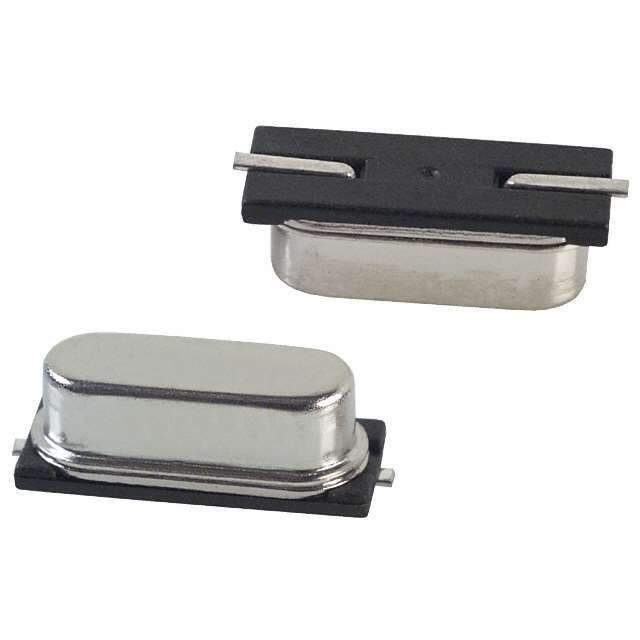

ECS-80-20-5PX-TR Real Image
Same model may have multiple batches, images only for reference.

ECS-80-20-5PX-TR

Part No ECS-80-20-5PX-TR
Manufacturer ECS Inc.
Catalog Crystals
Description CRYSTAL 8.0000MHZ 20PF SMD / 8 MHz ±30ppm Crystal 20pF 60 Ohms HC-49/US
Datasheet
ECS-80-20-5PX-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr ECS Inc.
Series CSM-7X
Package Tape & Reel
Type MHz Crystal
Frequency 8 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 20pF
ESR (Equivalent Series Resistance) 60 Ohms
Operating Mode Fundamental
Temperature Range - Operating -10°C ~ 70°C
Mounting Type Surface Mount
Package / Case HC-49/US
Size / Dimension 0.449" L x 0.189" W (11.40mm x 4.80mm)
Height - Seated (Max) 0.169" (4.30mm)
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Win Source Part Number 1350250-ECS-80-20-5PX-TR
Ultra Librarian 3D Model Ultra Librarian ECS-80-20-5PX-TR CAD Model

Description

The ECS Inc. 1350250-ECS-80-20-5PX-TR is a surface mount MHz crystal that belongs to the CSM-7X series.

  • Length: 0.449 inches
  • Width: 0.189 inches
  • Maximum Seated Height: 0.169 inches
  • Frequency: 8 MHz
  • ESR: 60 Ohms
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±30ppm
  • Load Capacitance: 20pF
  • Mode: Fundamental
  • Package: Tape and Reel
  • Operating Temperature Range: -10°C to 70°C
  • REACH: Unaffected
  • ECCN: EAR99
